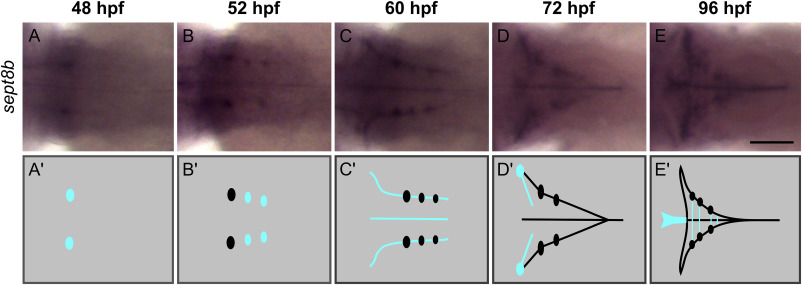

Spatiotemporal development of the sept8b expression pattern in the developing zebrafish brain.
Expression of sept8b is shown at 48 hpf (A), 52 hpf (B) and 60 hpf (C) as well as at 72 hpf (D) and 96 hpf (E). sept8b expression in the developing brain was detectable as consecutive appearing bilateral pairs of cells at 48–60 hpf. The symmetric pattern started to converge from the posterior at 72 hpf to form a triangular shape. Scale bar: 100μ.
