ZFIN Image: Cosacak et al., 2017, Fig. s9


Figure Caption

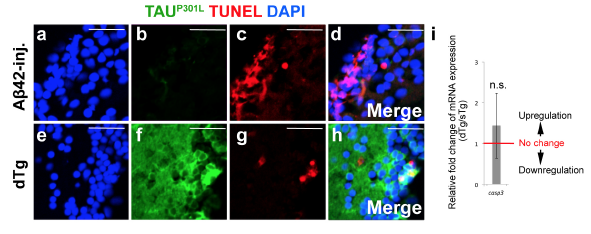

Fig. s9 (a-d) Immunohistochemistry (IHC) for TAU^P301L (green) and staining for apoptotic cells with TUNEL (green) telencephalon of a 6- month old non-transgenic animal injected with Amyloid-beta42. (a-c) Individual fluorescent channels for DAPI (a), TAU^P301L (b), and TUNEL (c). (d) Merged image. (e-h) IHC for TAU^P301L (green) and staining for apoptotic cells with TUNEL (green) telencephalon of a 6-month old dTg animal. (a-c) Individual fluorescent channels for DAPI (e), TAU^P301L (f), and TUNEL (g). (h) Merged image. (i) Quantification of relative change in the expression levels of casp3 mRNA in dTg compared to sTg adult zebrafish brains. Scale bars equal 25 μm. n = 5 fish for every staining.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Sci. Rep.
