Figure Caption
Fig. 2

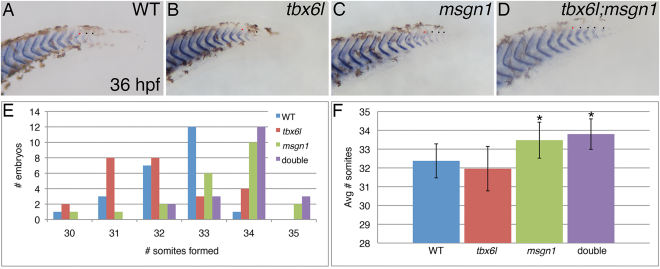

Loss of tbx6l does not enhance the msgn1 mutant phenotype. A–D: In situ hybridization for the cb1045/xirp2a somite boundary marker gene in 36-hpf wild-type (A), tbx6l mutant (B), msgn1 mutant (C), and tbx6l; msgn1 double-mutant (D) embryos that were raised together at standard temperature and fixed several hours after somitogenesis is normally completed. Lateral views of posterior tail are shown. E: Graph showing distribution of somite number per embryo for each genotype. F: Graph showing average somite number per embryo for each genotype. * P < 0.0005, when compared to wild-type.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev. Dyn.
