Fig. 5
pSmad distribution in brorin RNA-injected embryos.

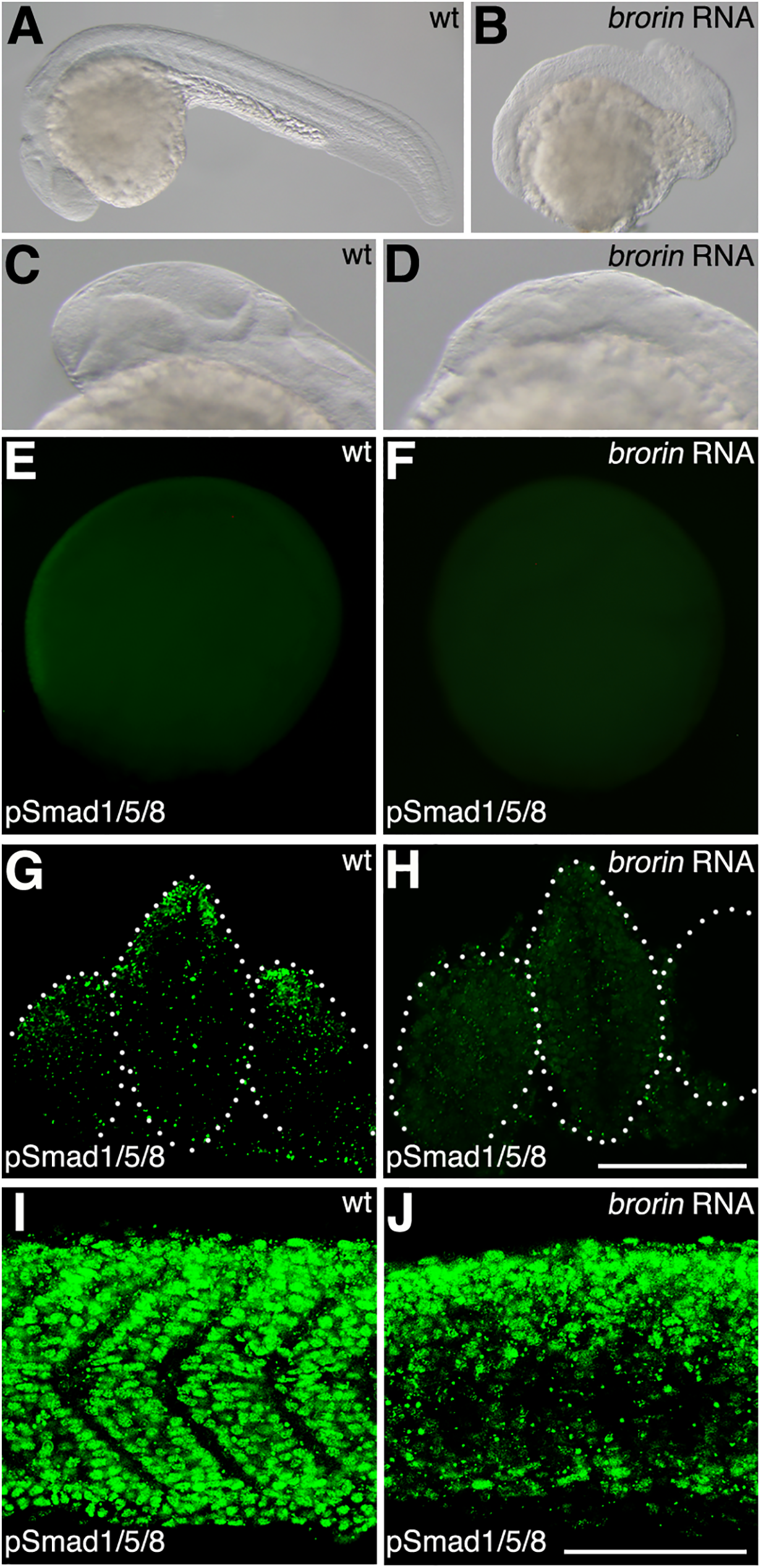

(A-D) Lateral views of wild-type (A, C) and brorin RNA-injected (B, D) embryos at 24 hpf. (E, F) Pattern of pSmad expression in wild-type (E) and brorin RNA-injected (F) embryos at 8 hpf. (G-J) Pattern of pSmad expression in wild-type (G, I) and brorin RNA-injected (H, J) embryos at 24 hpf. G and H are optical cross-sections; I and J are lateral views anterior to the left. Scale bar: 50 μm.
