Fig. S2

ID
ZDB-IMAGE-170428-24
Source
Figures for Eldred et al., 2017
Figure Caption

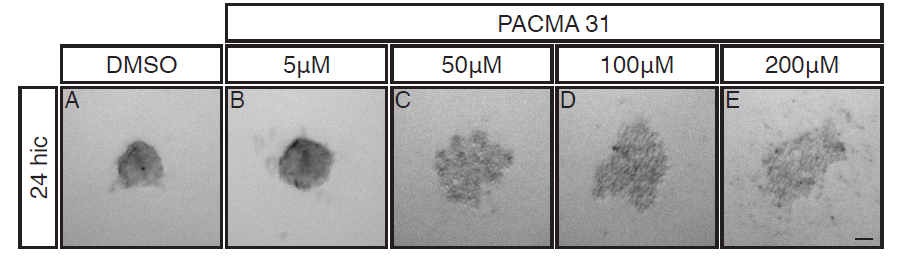

Fig. S2

R-Cognin is important for embryonic zebrafish retinal cell re-aggregation after dissociation.

24hpf cells after 24 hours in culture (24hic). Cells were treated with either (A) DMSO or (B) 5μM (C) 50μM (D) 100μM or (E) 200μM of PACMA 31, a small molecule inhibitor of R-Cognin. Cells cultured in 5μM PACMA31 (B) generated slightly looser aggregates. Cells cultured with 50μM - 200μM (C-E) PACMA31 were completely unable to aggregate. Scale bar = 50μm.
