Fig. S3

ID
ZDB-IMAGE-170209-21
Source
Figures for Barske et al., 2016
Figure Caption

Fig. S3

barx1 and sox9a mark different states of skeletal differentiation.

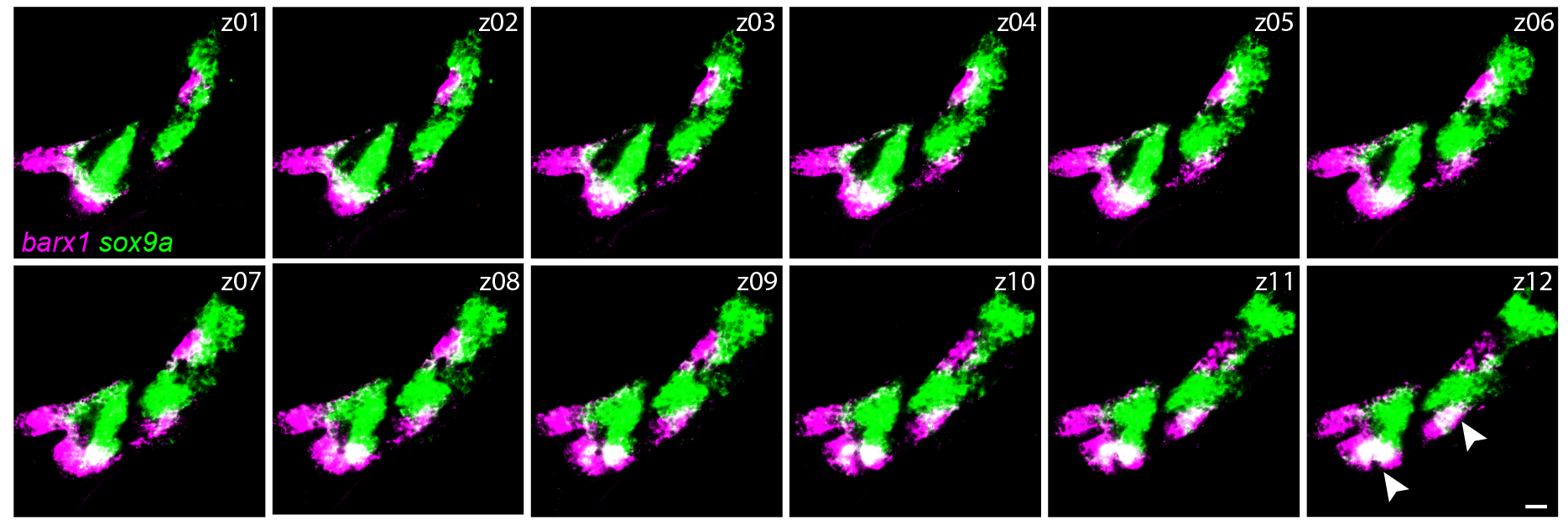

Individual confocal sections of a barx1 (magenta) and sox9a (green) in situ hybridization in a wild-type embryo at 48 hpf, showing that the two markers are largely mutually exclusive, with the exception of the ventral tip of the forming Meckel’s and ceratohyal cartilages (white arrowheads in z12). Scale bars in all panels = 20 μm.
