Fig. 2

ID
ZDB-IMAGE-161130-2
Genes
Source
Figures for Grainger et al., 2016
Figure Caption

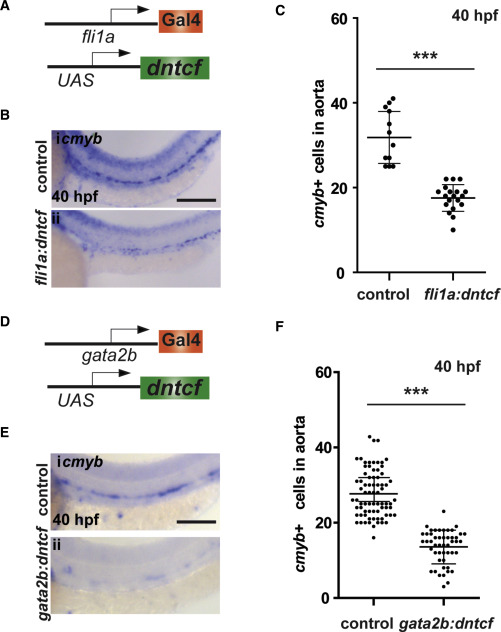

Fig. 2

Wnt Cue Is Required in Cells of the HE

(A) Schematic of transgenic elements used for endothelial specific expression of dntcf in endothelial cells.

(B) WISH for cmyb at 40 hpf in control and in fli1a:Gal4; UAS:dntcf fish.

(C) Quantitation of cmyb+ cells from (B).

(D) Schematic of transgenic elements used for endothelial specific expression of dntcf in the HE.

(E) WISH for cmyb at 40 hpf in control and in gata2b:Gal4; UAS:dntcf fish.

(F) Quantification of cmyb+ cells from (E).

∗∗∗p < 0.001. Scale bars, 100 μm. Error bars represent SD. See also Figure S2.
