Fig. S3

ID
ZDB-IMAGE-161026-26
Source
Figures for Nissim et al., 2016
Figure Caption

Fig. S3

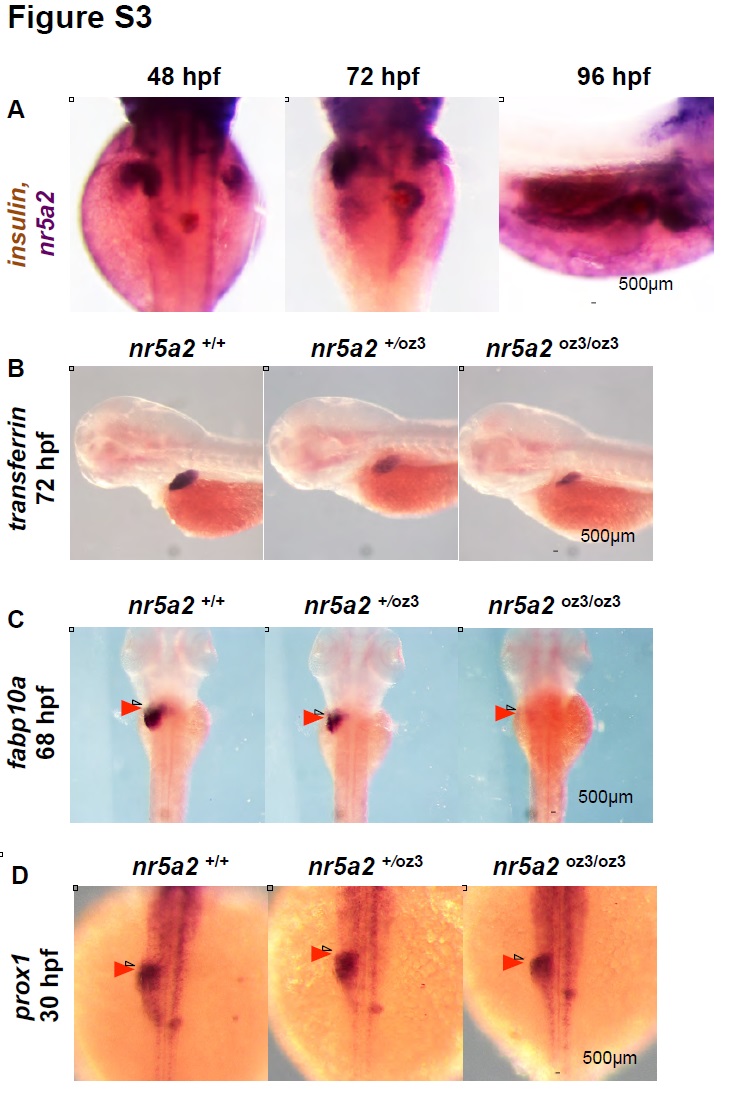

Additional nr5a2oz3 mutant phenotyping A) Double in situ hybridization for insulin (brown) and nr5a2 (purple) from 48 - 96 hpf. nr5a2 and insulin are independently expressed from 72 - 96 hpf. B) In situ hybridization for mature hepatocyte marker transferrin A demonstrates that nr5a2oz3/oz3 embryos have a reduced liver size. C) In situ hybridization for fabp10a at 68 hpf reveals that fabp10a+ hepatocytes fail to form in the liver region of nr5a2oz3/oz3 embryos (red arrows). D) nr5a2oz3/oz3 embryos have normal prox1 expression in the liver and pancreas regions at 30 hpf.
