Fig. 3

ID
ZDB-IMAGE-161026-11
Source
Figures for Deshwar et al., 2016
Figure Caption

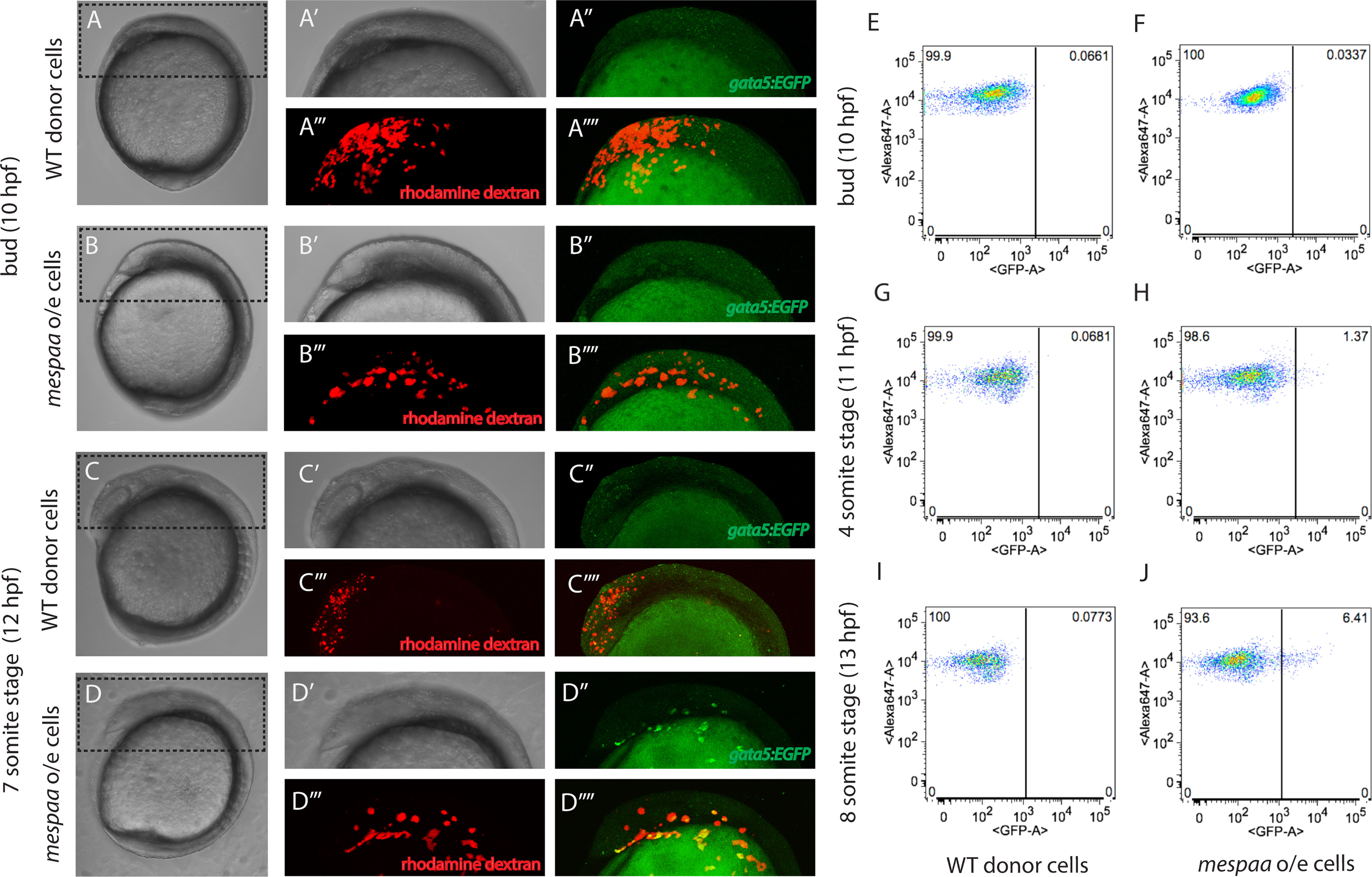

Fig. 3

mespaa over-expressing cells do not induce expression of a gata5-EGFP reporter until after gastrulation. (A-D) Host embryos with transplanted WT or mespaa over-expressing donor cells (gata5:EGFP, labeled with rhodamine dextran) at the bud stage (A-B) and the 7 somite stage (12 hpf) (C-D). (E-J) FACS plot of rhodamine dextran-labeled gata5:EGFP donor cells from host embryos at different stages. Cells were either WT (E,G,I) or mespaa over-expressing (F,H,J). Percentage of cells in each bin (GFP +′ve vs ′ve) is shown.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 418(1), Deshwar, A.R., Onderisin, J.C., Aleksandrova, A., Yuan, X., Burrows, J.T., Scott, I.C., Mespaa can potently induce cardiac fates in zebrafish, 17-27, Copyright (2016) with permission from Elsevier. Full text @ Dev. Biol.
