Fig. 7

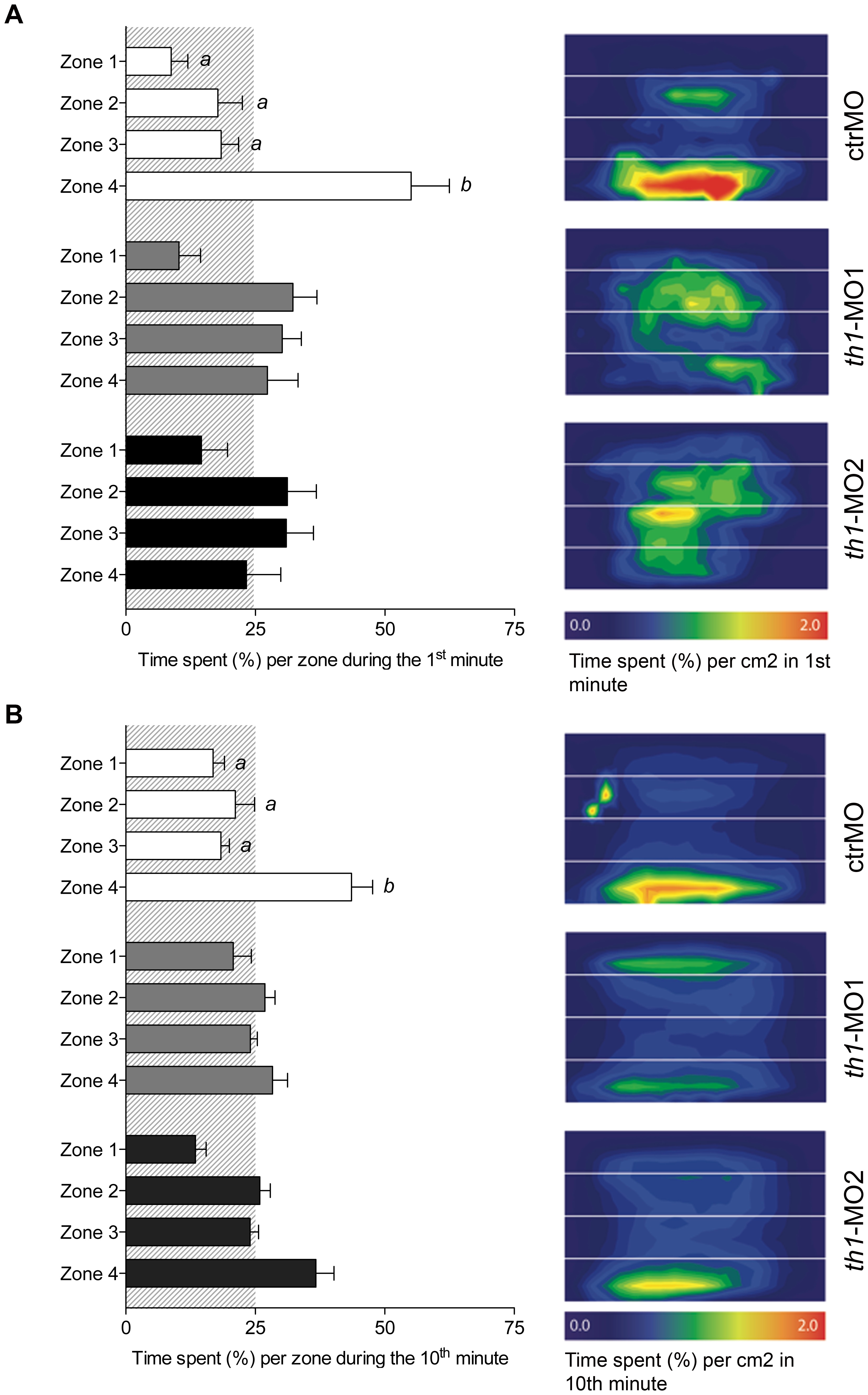

Adult morphants have impaired diving behaviour in a novel environment.

Early disruptions of th1 expression have long-lasting effects on the vertical diving behaviour in the novel diving tank task. Diving activity was assessed as the percentage time that was spent in each vertical zone (1-4) during a 10-minute trial. (A) shows behaviour that was displayed during the 1st minute, and (B) shows behaviour during the 10th minute. Letters indicate statistically significant differences between groups (one-way ANOVA followed by Bonferroni′s test), p≤0.05. Corresponding heat maps are displayed to reflect fish location in each zone.
