ZFIN Image: Singh et al., 2016, Fig. 6


Figure Caption

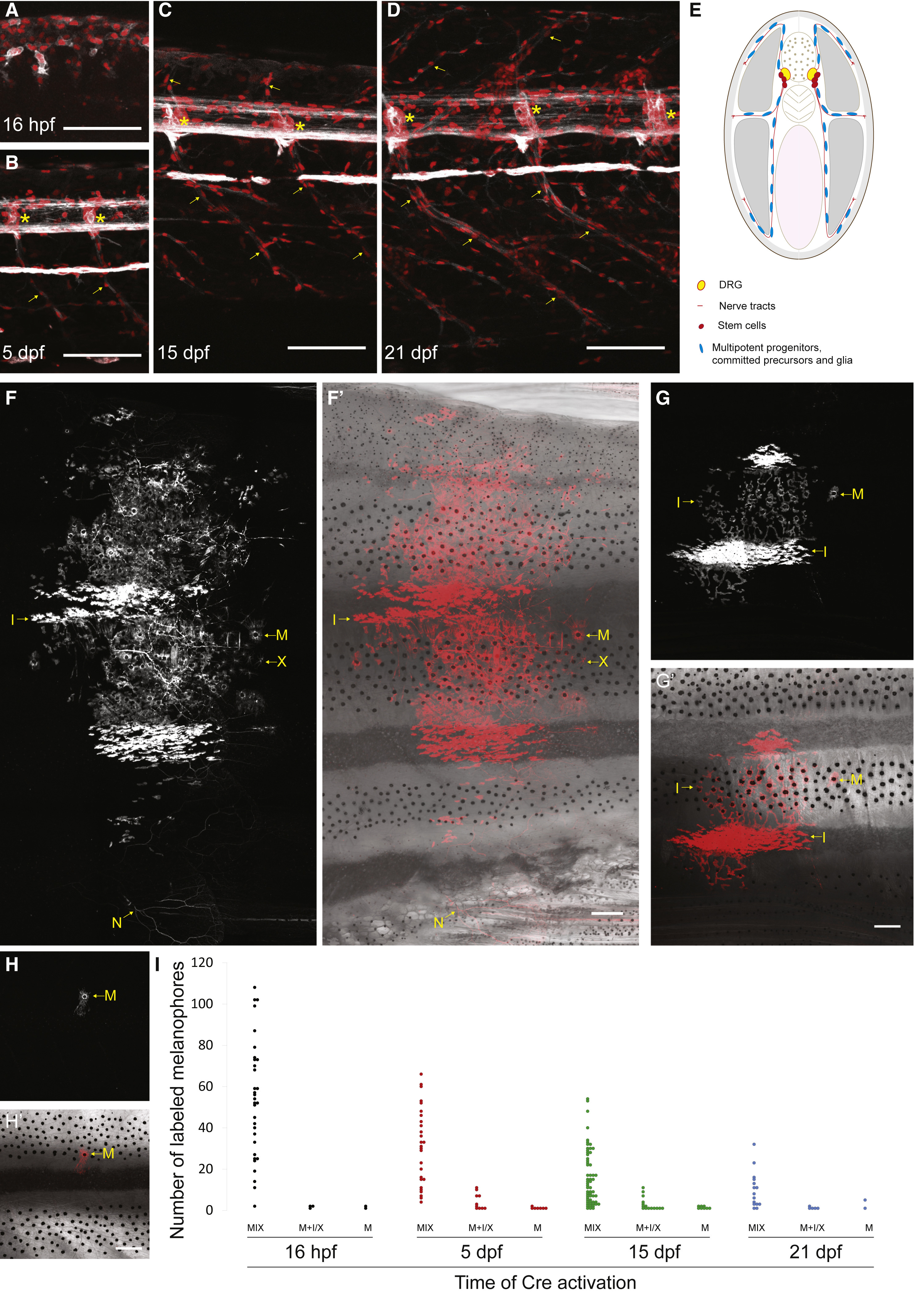

Fig. 6

Progenitors Increase in Number between Embryogenesis and Metamorphosis; Proliferation Ability Diminishes with Fate Restriction

(A-D) Tg(sox10mG) expression in zebrafish trunk at (A) 16 hpf, (B) 5 dpf, (C) 15 dpf, and (D) 21 dpf. Asterisk indicates DRG; arrows point to sox10-positive cells along the nerve tracts. Gray, membrane-tagged GFP; red, nuclear RFP.

(E) Schematic representation of the association between pigment cell progenitors and peripheral neurons.

(F-I) Committed melanoblasts generate a small number of melanophores. Melanophore distribution in (F) MIX, (G) MI, and (H) M clones. (I) Quantification of the number of labeled melanophores; each dot represents the number of labeled melanophores in an individual clone.

Scale bars represent 100 µm in (A)-(D) and 250 µm in (F)-(H). See also Figures S5 and S6.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 38(3), Singh, A.P., Dinwiddie, A., Mahalwar, P., Schach, U., Linker, C., Irion, U., Nüsslein-Volhard, C., Pigment Cell Progenitors in Zebrafish Remain Multipotent through Metamorphosis, 316-30, Copyright (2016) with permission from Elsevier. Full text @ Dev. Cell
