Fig. 6

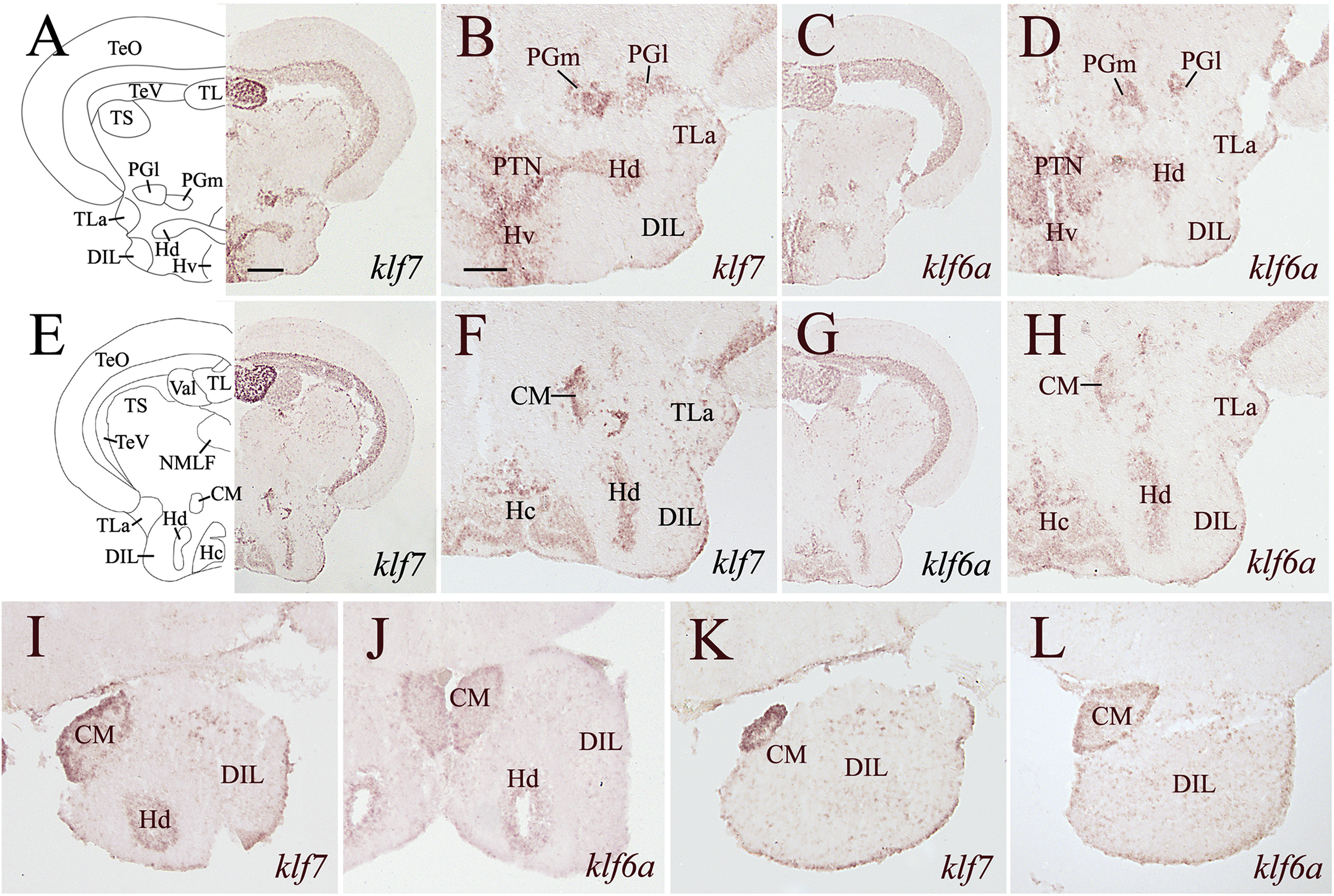

Expression of klf7 and klf6a in preglomerular nuclei and hypothalamus of the adult zebrafish brain. Panels A, C, E and G show low magnifications of halves of brain sections from levels shown in Fig. 1. Panels B, D, F and H are higher magnifications of the preglomerular complex and hypothalamus of their respective lower magnified views on the left. Panels I to L show higher magnified views of more posterior hypothalamus. See list for abbreviations. All low magnified images have the same magnifications (Scale bar = 200 µm), and all higher magnified images have the same magnifications (Scale bar = 100 µm).
