Fig. 3

ID
ZDB-IMAGE-160830-3
Source
Figures for Just et al., 2016
Figure Caption

Fig. 3

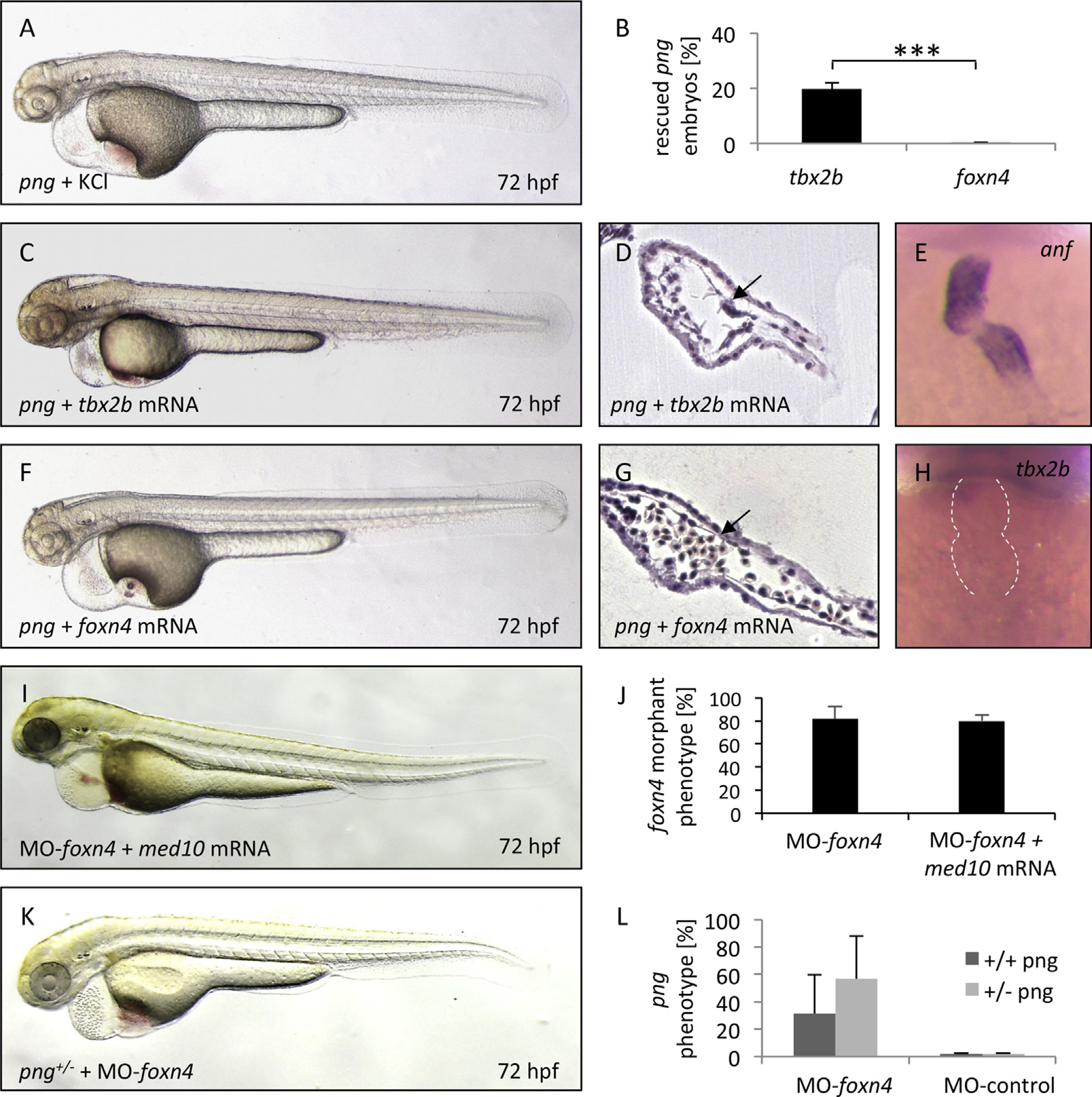

Ectopic expression of Tbx2b rescues the valve defect in png mutants. (A-E) Injection of tbx2b RNA into homozygous png mutants leads to the reconstitution of endocardial cushion development (19.70% ± 2.32%, n = 101, P < 0.001, 4 independent experiments) (B-D), whereas injection of KCl has no effect (A). (D) H&E staining of sections of a tbx2b RNA-injected png heart at 72 hpf. Endocardial cushion development (black arrow) in png hearts is reconstituted. (E) In tbx2b RNA-injected png hearts, anf is only present in the ventricular and atrial myocardium and not in the AVC. (B, F-H) Injection of foxn4-RNA into homozygous png mutants does not rescue endocardial cushion development (n = 87, 3 independent experiments). (G) H&E staining of sections of a foxn4 RNA-injected png heart at 72 hpf. No endocardial cushions are formed in foxn4 RNA-injected png hearts. (H) Tbx2b expression is not reconstituted in AV myocardial cells in png mutants injected with foxn4-RNA. (I, J) Injection of MO-foxn4 leads to a heart valve phenotype in 81.80% ± 10.33% (n = 122, 4 independent experiments) and co-injection of med10-RNA and MO-foxn4 does not rescue the foxn4 morphant phenotype (80.01% ± 5.36, n = 198, 4 independent experiments). (K, L) Injection of MO-foxn4 in wt (31.31% ± 28.61%, n = 54, 4 independent experiments) and heterozygous png embryos (56.79% ± 31.36%, n = 97, 4 independent experiments) revealed a sensitizing effect of Foxn4-depletion on heterozygous png embryos.
