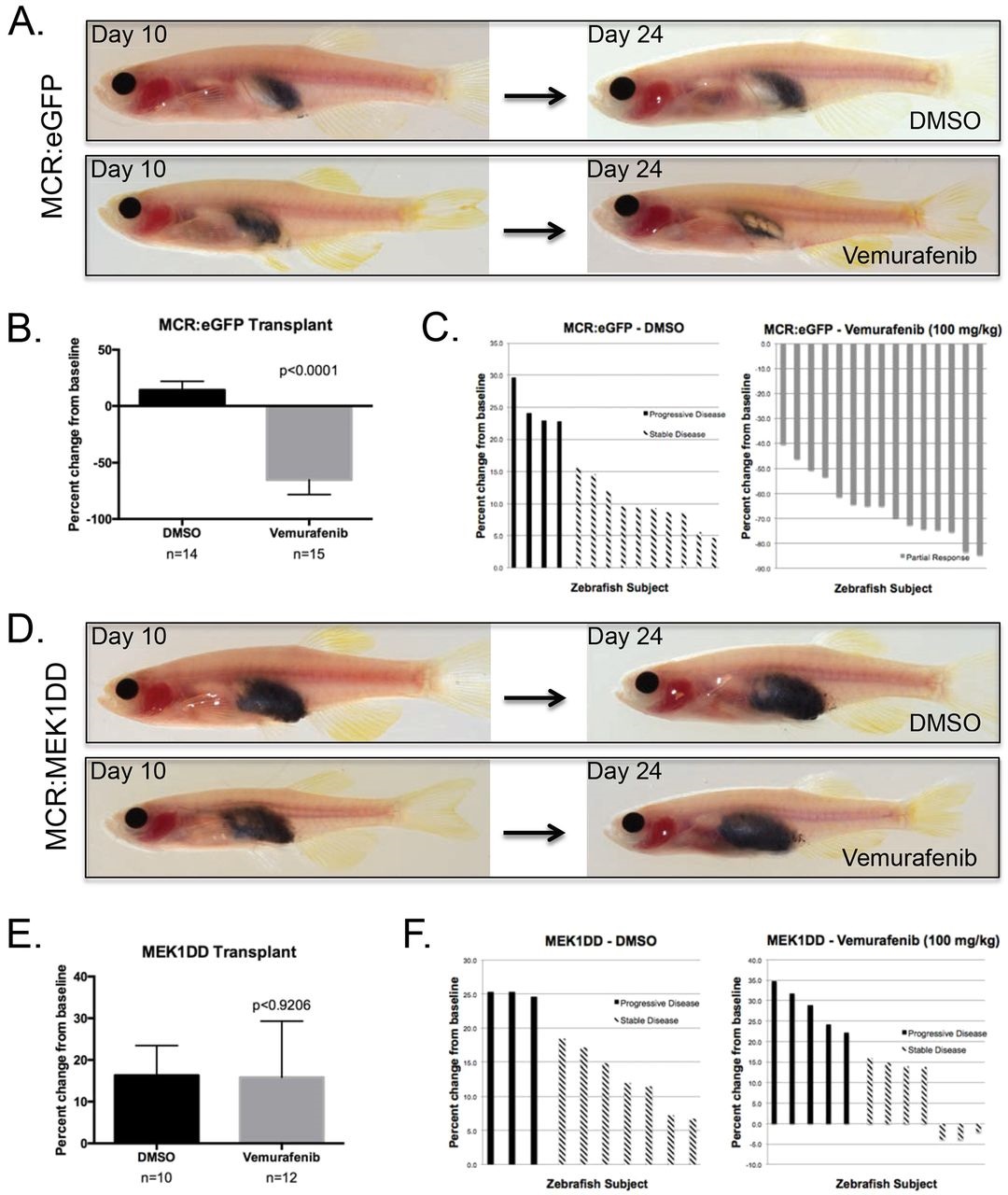

Fig. 4
BRAFV600E inhibitor treatment of primary zebrafish melanoma transplants. (A) MHC caspers were transplanted with MiniCoopR:eGFP control melanoma tumors. The top panel shows the tumor burden of a representative zebrafish prior to DMSO treatment at day 10 and after a 2-week treatment with DMSO at day 24. The bottom panel shows the tumor burden of a representative zebrafish prior to Vemurafenib treatment at day 10 and after a 2-week treatment regimen with Vemurafenib at day 24. (B) Average percent change from baseline of tumor area based on pigmentation in a cohort with n=14 or n=15 in the DMSO or Vemurafenib-treated arm, respectively. Two-tailed paired t-test was performed for statistical analysis. Data represented as mean±s.d. of three replicates. (C) Waterfall plots depict the range of response for the experimental cohorts, DMSO and Vemurafenib. The response was quantified by percent change of tumor area from baseline. (D) MHC caspers were transplanted with MiniCoopR:MEK1DD melanoma tumors. The top panel shows the tumor burden of a representative zebrafish prior to DMSO treatment at day 10 and after a 2-week treatment with DMSO at day 24. The bottom panel shows the tumor burden of a representative zebrafish prior to Vemurafenib treatment at day 10 and after a 2-week treatment regimen with Vemurafenib at day 24. (E) Average percent change from baseline of tumor area based on pigmentation in a cohort with n=10 or n=12 in the DMSO or Vemurafenib-treated arm, respectively. Two-tailed paired t-test was performed for statistical analysis. Data represented as mean±s.d. of two replicates. (F) Waterfall plots depict the range of response for the experimental cohorts, DMSO and Vemurafenib. The response was quantified by percent change of tumor area from baseline.
