Fig. 3

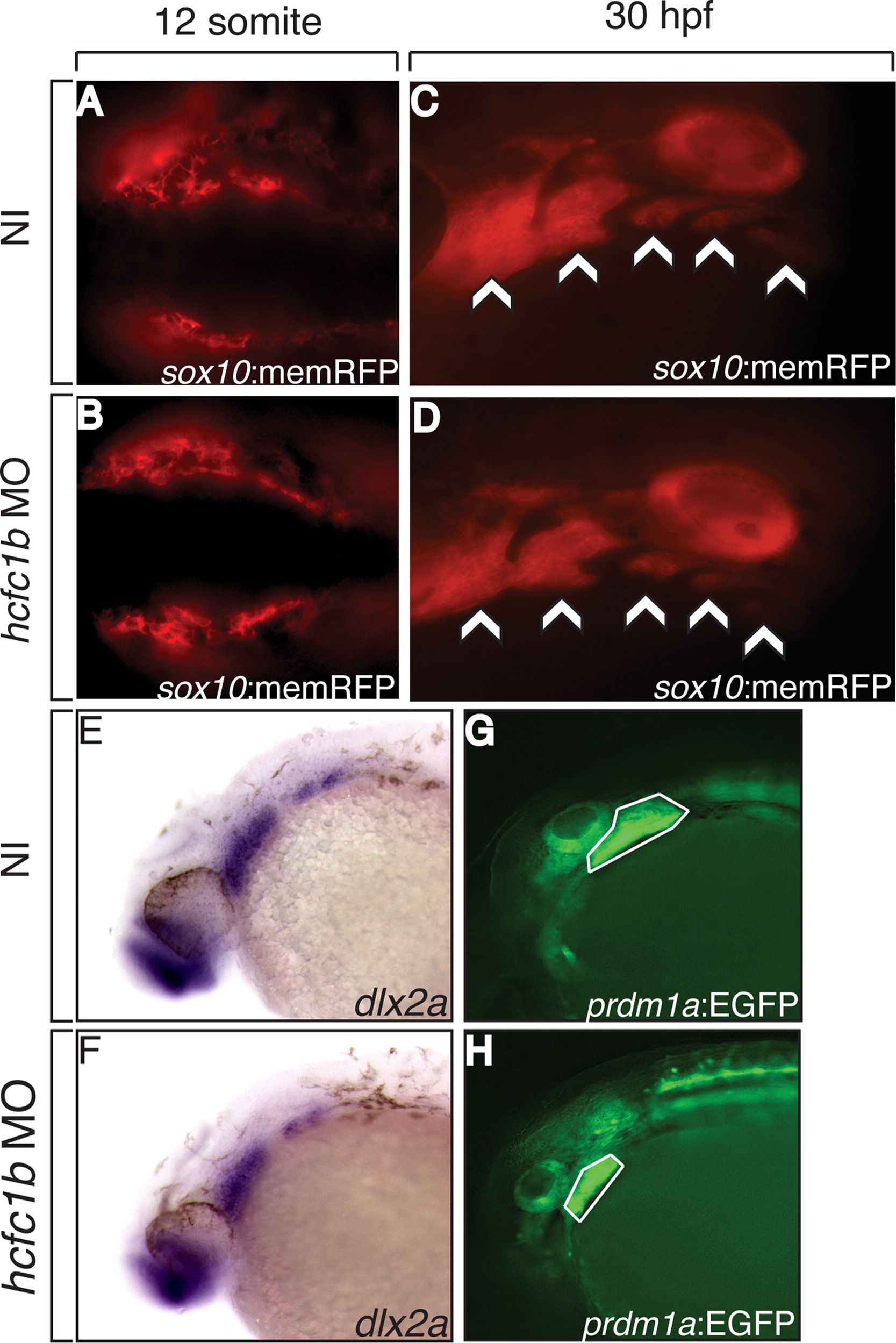

NCCs are specified and migrate correctly in morphant animals. (A and B) Dorsal view (anterior to posterior from left to right) of Tg(Sox10:mRFP) embryos injected with an hcfc1b targeting morpholino (hcfc1b-MO) were visualized for RFP expression at the 12 somite stage. (C and D) Sagittal view of non-injected (NI) or hcfc1b MO injected Tg(Sox10:mRFP) larvae at 30 h post fertilization (hpf). Arrows depict the formation of the pharyngeal arches in both wildtype and morphant animals. (E-H) In situ hybridization (ISH) of dlx2a in non-injected (NI) and hcfc1b morphants (hcfc1b MO) at 1 day post fertilization (dpf). (I and J) Lateral view of non-injected Tg(prdm1a:EGFP) (NI) or Tg(prdm1a:EGFP) embryos injected with the hcfc1b targeting morpholino (hcfc1b MO). The encircled area depicts posterior arch expression of EGFP in transgenic animals.
