Figure Caption
Fig. S8

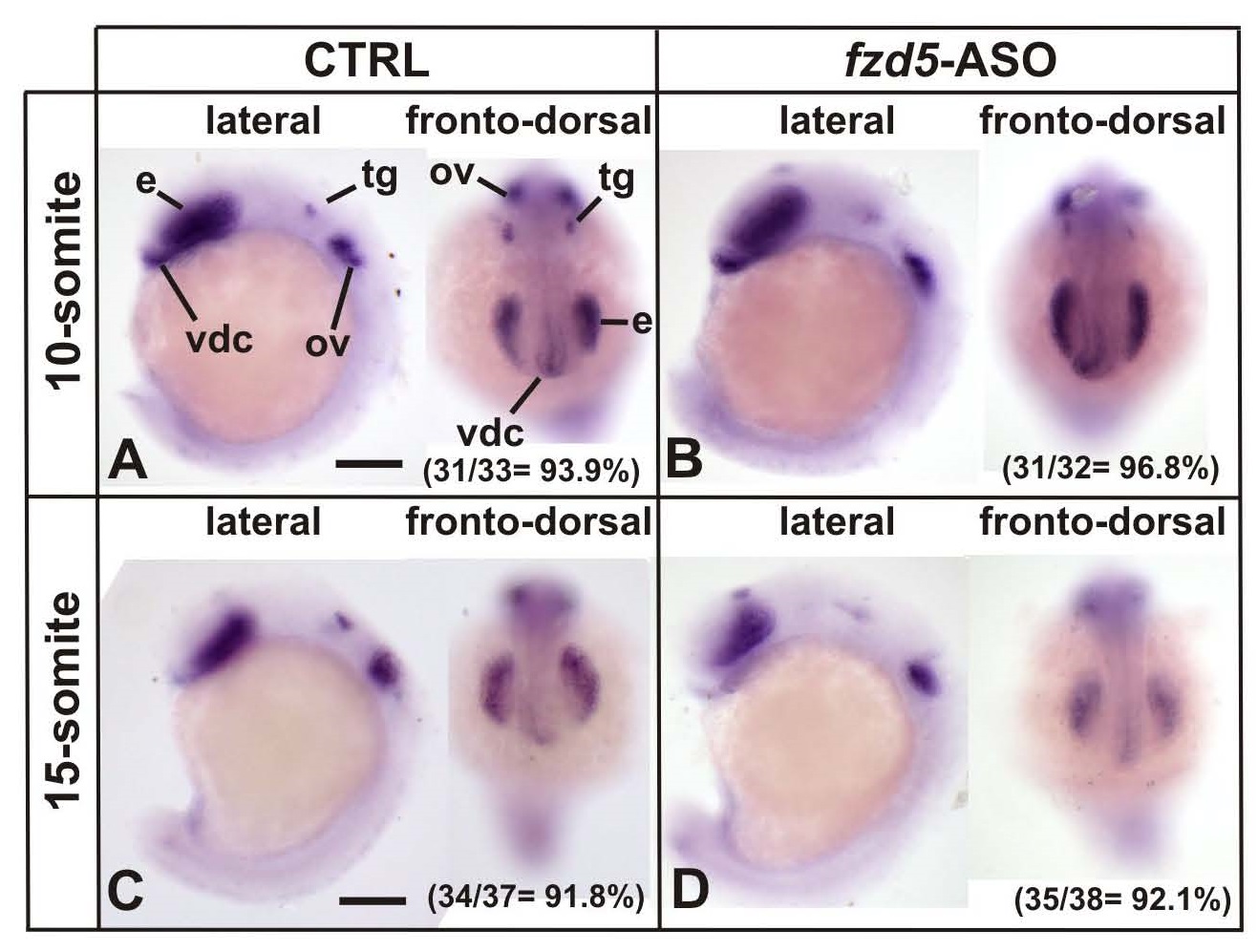

Analysis of tbx2b expression pattern in fzd5-ASO injected embryos. WISH assessing the expression of tbx2b mRNA as a marker of ventral diencephalon, eyes, trigeminal ganglion, and otic vesicles in 10-somite (A-B) and 15-somite (C-D) staged embryos injected with CTRL (A, C) or fzd5-ASO (B, D). In lateral views anterior is to the left, and in fronto-dorsal views dorsal is up. Numbers and percentages of embryos/larvae with phenotype are indicated in each panel. Scale bars (200 µm) are represented in A and C. e: eyes; ov: otic vesicles; tg: trigeminal ganglion; vdc: ventral diencephalon.
