Fig. S9

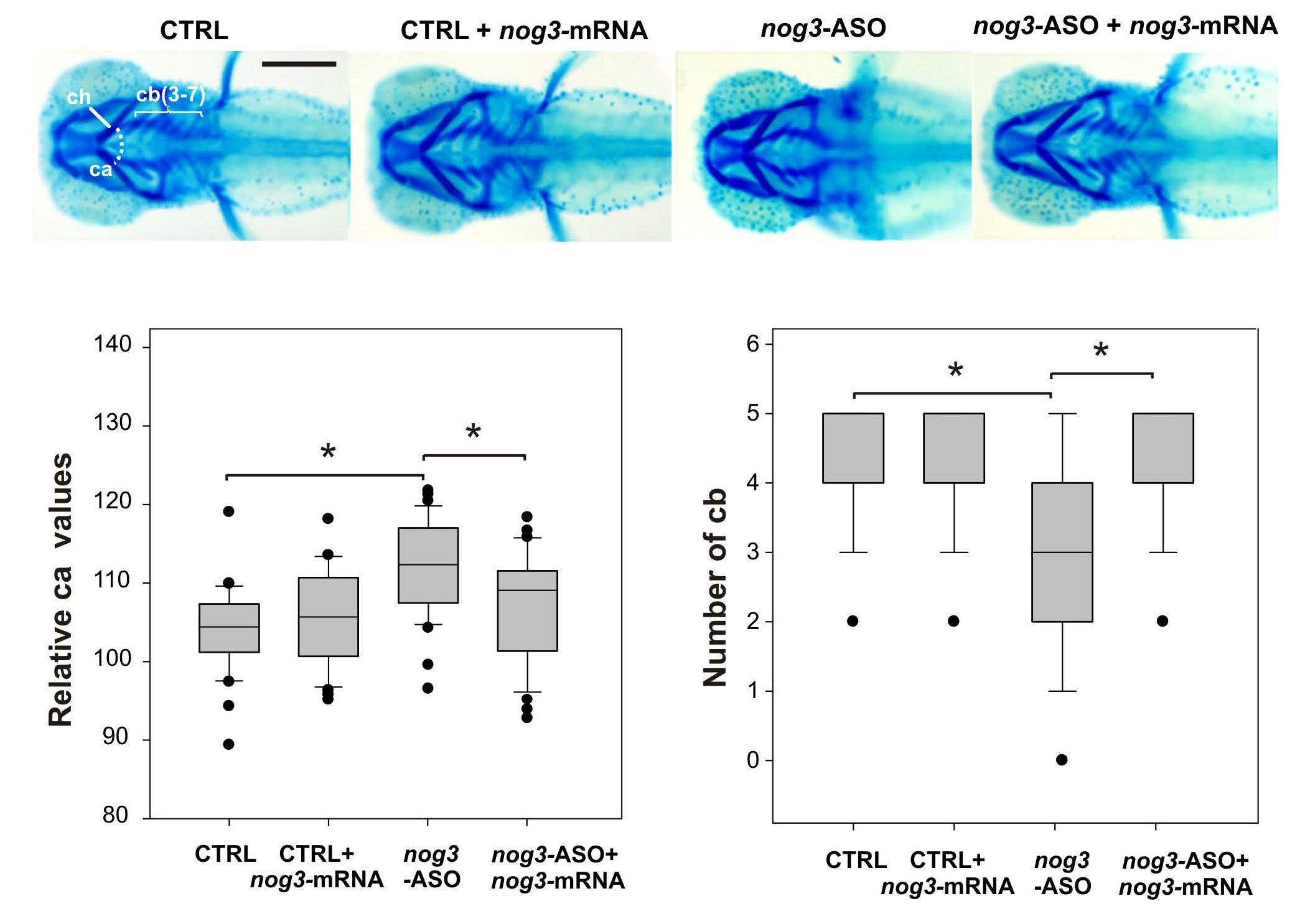

Rescue of the zebrafish embryos phenotype produced by nog3-ASO injection by coinjection with nog3-mRNA. Representative pictures of Alcian Blue staining of craniofacial cartilages along with box-plots of the relative ceratohyal cartilages angle and ceratobranchial cartilages number of 4-dpf staged larvae injected with CTRL, CTRL + nog3- mRNA, nog3-ASO and nog3-ASO + nog3-mRNA. * p<0.05, t-Student test. Scale bar represents 200 µm. Ventral views, anterior to the left. ca: ceratohyal cartilages angle; cb(3-7): ceratobranchial cartilages 3 to 7; ch: ceratohyal cartilage.
