ZFIN Image: Ott et al., 2016, Fig. S1


Figure Caption

Fig. S1

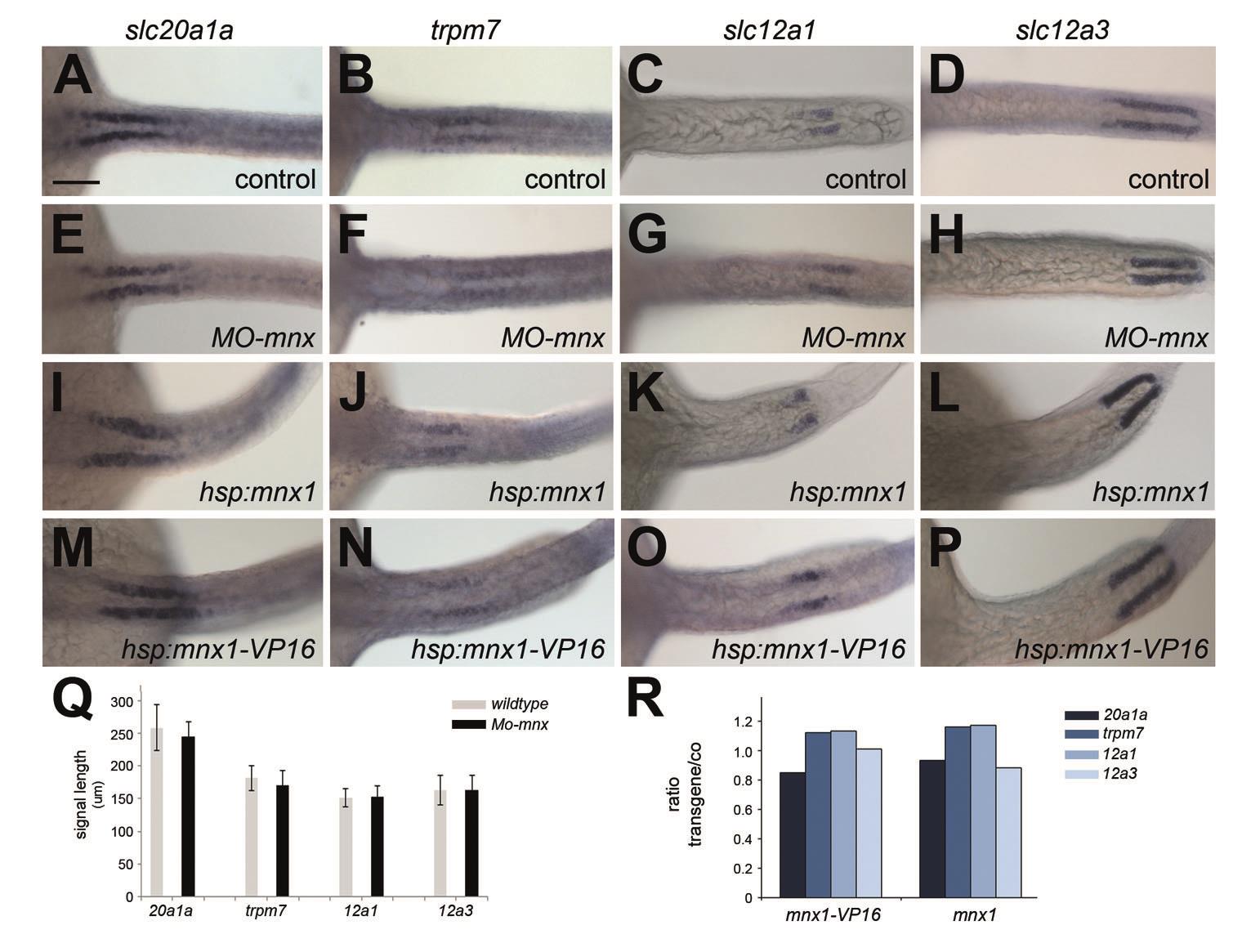

Pronephric tubule patterning is independent of Mnx function. Expression of slc20a1a (A, E, I, M), trpm7 (B, F, J, N), slc12a1 (C, G, K, O) and slc12a3 (D, H, L, P). (A-H) Similar expression patterns of proximal and distal nephron segment markers in uninjected and mnx1/mnx2b-Morpholino (MO-mnx) injected embryos at 48hpf. (I-P) Expression and positioning of segment markers in hsp:mnx1 and hsp:mnx1-VP16 induced embryos is similar to controls. Body axis shortening after heat-induction at the 2 somite stage was observed in both transgenic lines. (Q, R) Signal-to-bodylength ratios of Mo-mnx injected or transgenic induced animals did not show significant differences.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 411(1), Ott, E., Wendik, B., Srivastava, M., Pacho, F., Töchterle, S., Salvenmoser, W., Meyer, D., Pronephric tubule morphogenesis in zebrafish depends on Mnx mediated repression of irx1b within the intermediate mesoderm, 101-14, Copyright (2016) with permission from Elsevier. Full text @ Dev. Biol.
