Fig. 4

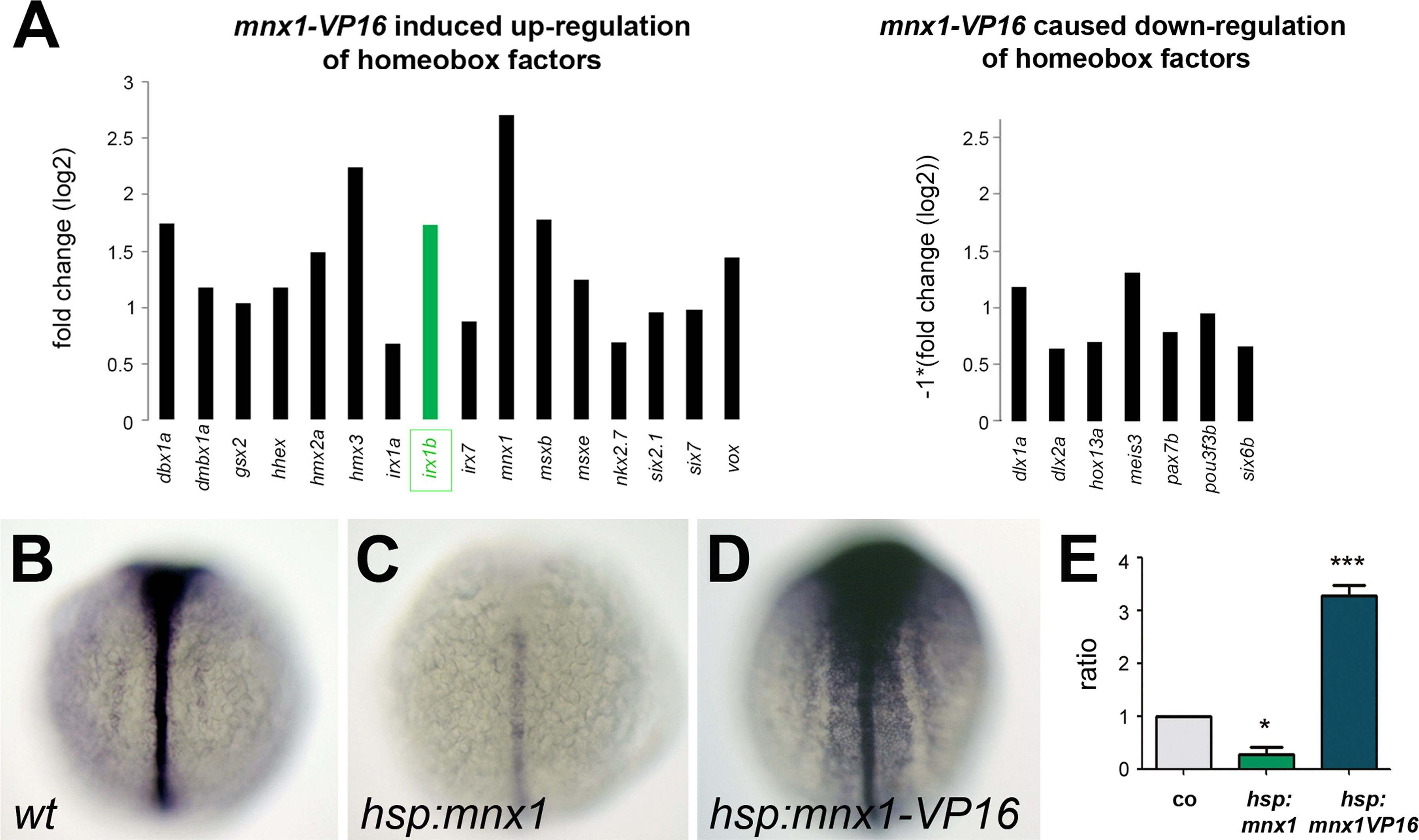

Mnx1 negatively regulates irx1b expression. Microarray analysis identified differential expression of homeobox-containing genes in mnx1-VP16 induced animals compared to wild type controls. Genes attributed with the GO terms transcription regulation and homeobox that have increased expression in mnx1-VP16 animals are indicated (note that the robust mnx1 induction corresponds to the induced mnx1-VP16 transcripts). Shown are genes with >1.5 fold increase or reduction in expression after mnx1-VP16 activation (A). Of three identified irx family genes, irx1b showed the highest change in expression (labeled in green). Whole mount in situ hybridization for irx1b in wild type controls (B), mnx1 induced (C) and mnx1-VP16 induced (D) embryos, dorsal view. Negative regulation of irx1b through Mnx1 was further confirmed in qPCR analysis (E; p val <0.05 (*), <0.001 (***)).
