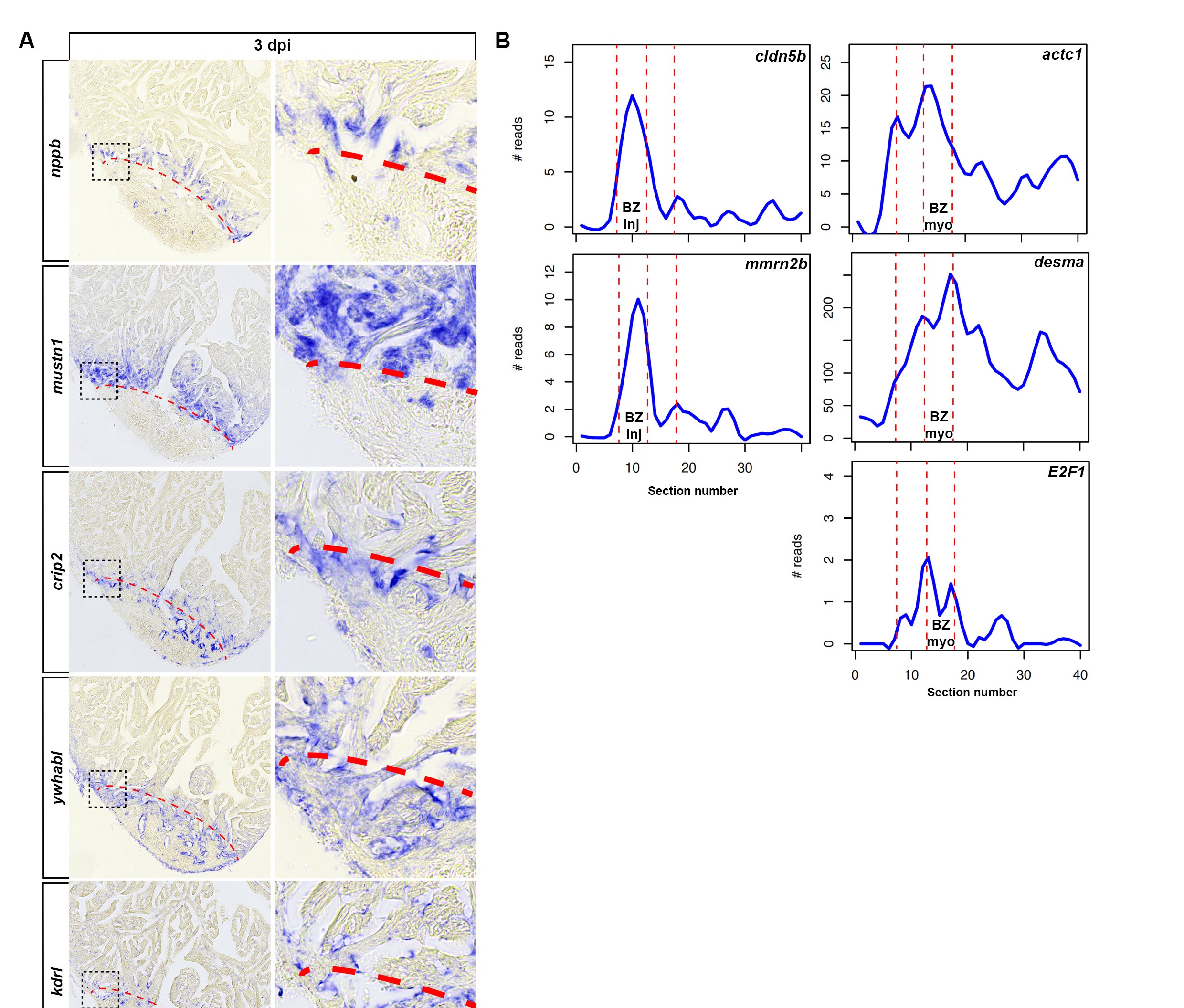

Fig. S2

Spatially restricted gene expression reveals two distinct border zone regions. Related to Figure 3.

(A) In situ hybridization on consecutive heart sections (3 dpi) for genes identified by Tomo-seq to be upregulated in the BZmyo (nppb and mustn1) and BZinj (crip2 and ywhabl). Expression of crip2 and ywhabl overlapped with kdrl, a marker for endothelial cells. Scale bar, 50 µm. Dashed red line outlines the injury area.

(B) Expression traces from tomo-seq data (3 dpi) for genes involved in embryonic vascular endothelium development (cldn5b and mmrn2b), myocardial development (actc1 and desma) and cell cycle control (E2F1).
