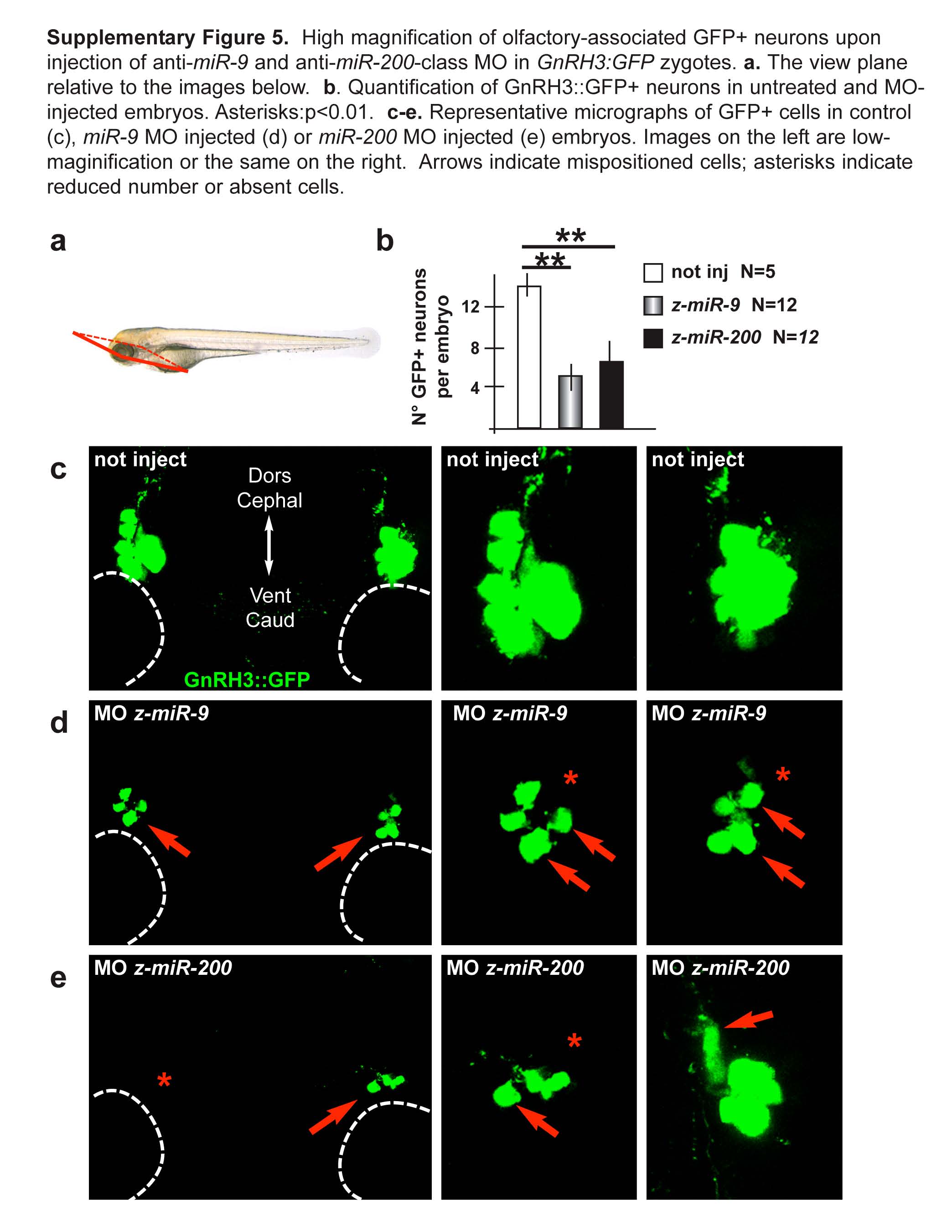

Fig. S5 High magnification of olfactory-associated GFP+ neurons upon injection of anti-miR-9 and anti-miR-200-class MO in GnRH3:GFP zygotes. a. The view plane relative to the images below. b. Quantification of GnRH3::GFP+ neurons in untreated and MO-injected embryos. Asterisks:p<0.01. c-e. Representative micrographs of GFP+ cells in control (c), miR-9 MO injected (d) or miR-200 MO injected (e) embyros. Images on the left are low-magnification or the same on the right. Arrows indicate mispositioned cells; asterisks indicate reduced number or absent cells.
