Fig. 2

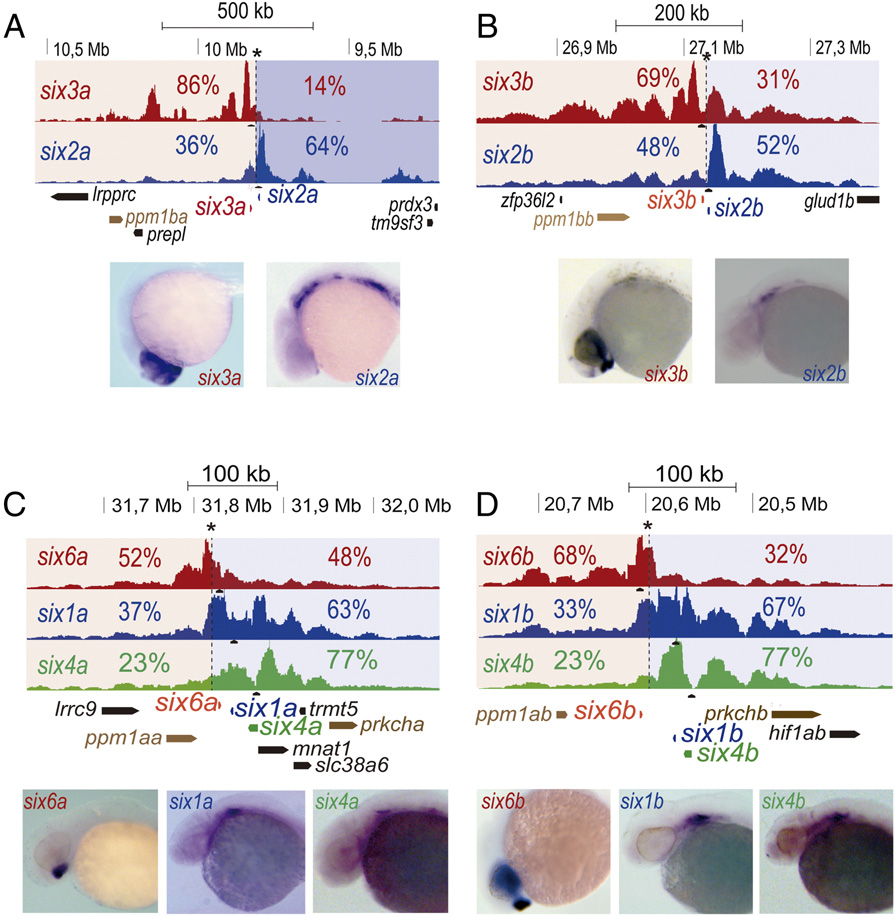

All four zebrafish six clusters are divided in two different 3D compartments. (A–D) 4C-seq on whole zebrafish embryos at 24 hpf from the different six genes at each cluster (black triangles). Border regions are indicated by an asterisk, and the two 3D compartments are shaded in red and blue. Contact percentages for each gene on the two 3D compartments are shown. Expression patterns of each gene at 24 hpf are shown for each gene below the 4C-seq tracks. (A) six3a/six2a cluster. (B) six3b/six2b cluster. (C) six6a/six1a/six4a cluster. (D) sixba/six1b/six4b cluster.
