Fig. 10

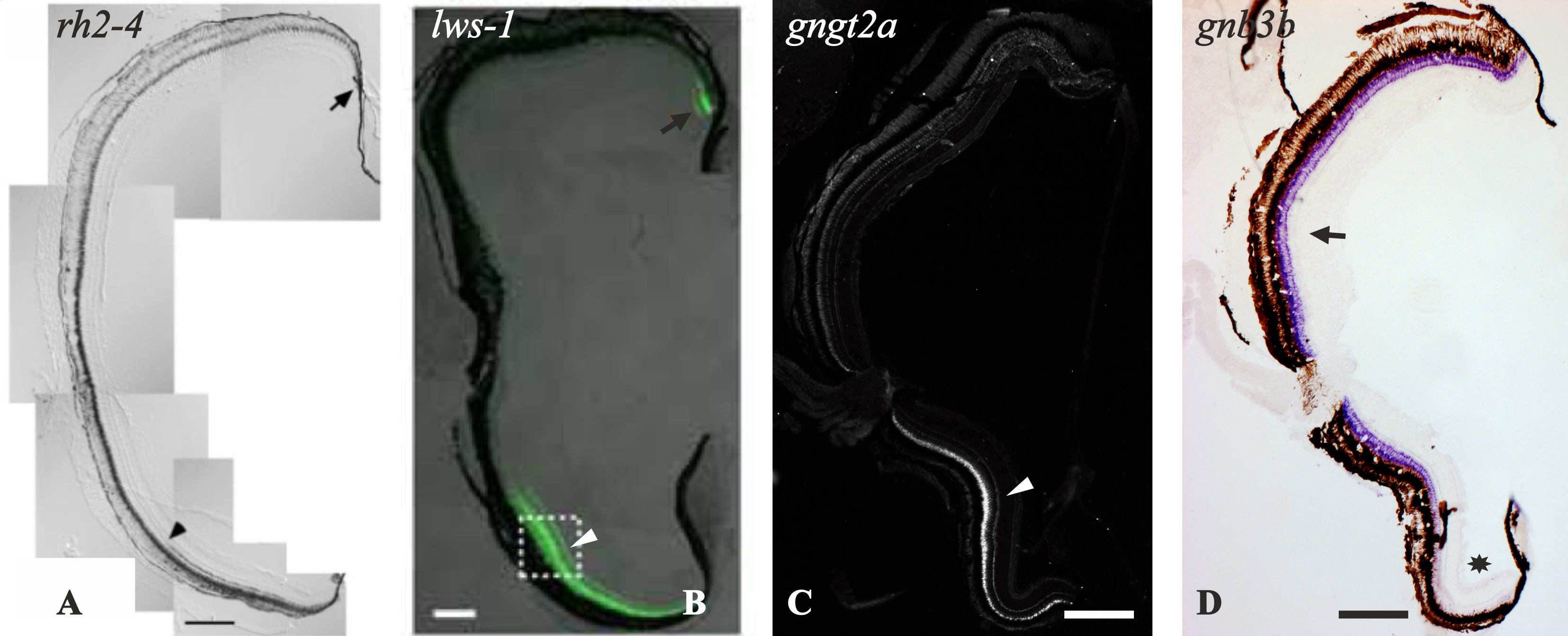

Photomontage that highlights gene specialisations of the zebrafish ventral retina.
These photomicrographs show radial sections of adult zebrafish retinae. They demonstrate specific expression of rh2–4 (A), lws-1 (B) and gngt2a (C) in the ventral retina (arrowheads), while gnb3b (D) shows expression in the dorsal and medial retina (black arrow). Note that gnb3b expression is absent in the ventral retina (asterisk). The pictures in panels A and B are used with permission from Takechi and Kawamura (2005) [51] and Tsujimura et al. (2010) [50], respectively. The pictures in panels C and D are extracted from the present results. Scale bars: 200 µm.
