Figure Caption

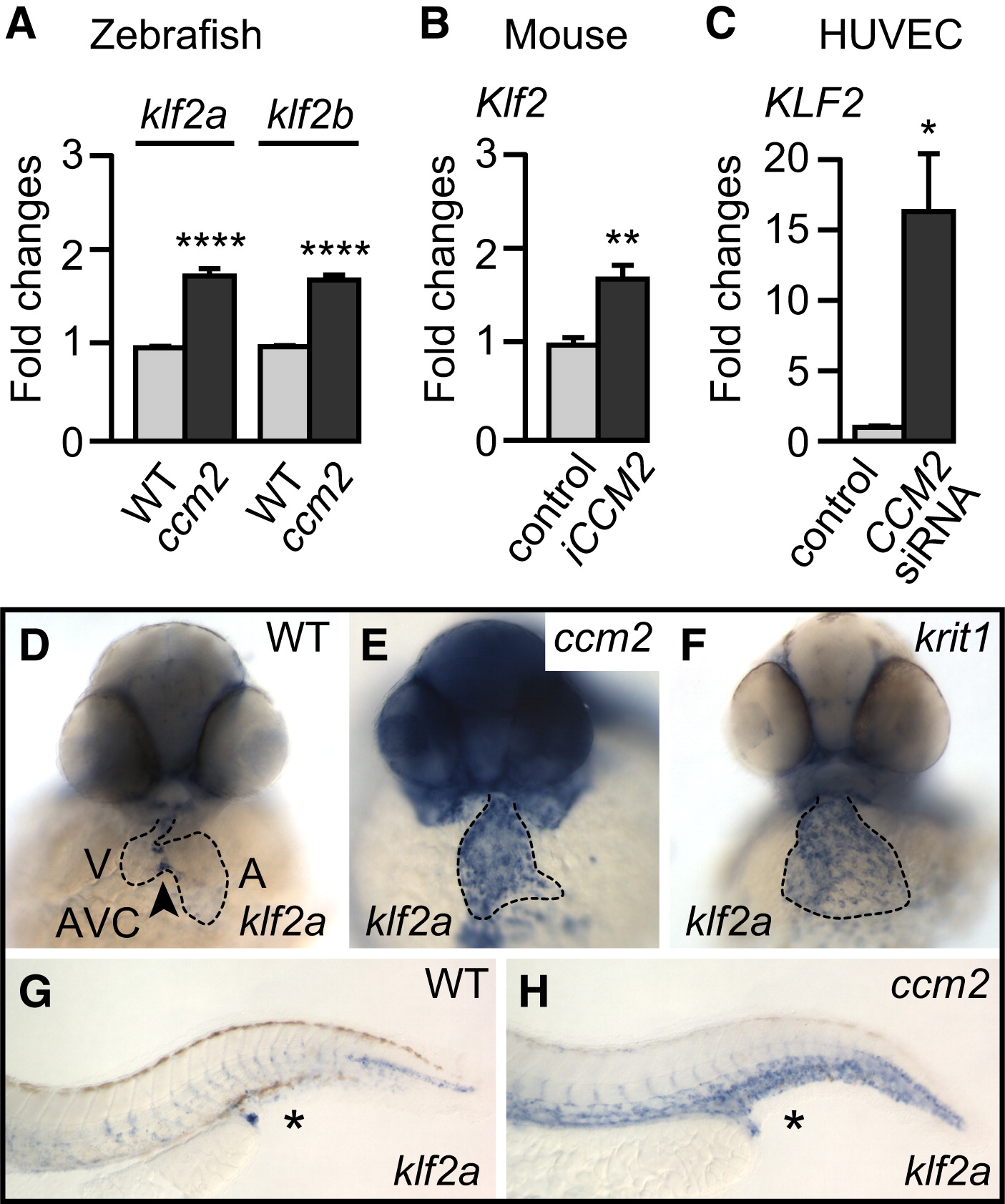

Fig. 1

Loss of CCM Proteins Causes Elevated Levels of klf2 Expression

(A–C) Loss of Ccm2 causes elevated levels of klf2a and klf2b mRNA in zebrafish at 48 hrpf (A), of Klf2 mRNA in mouse cerebellar tissue of iCCM2 mice at P15 (B), and of KLF2 mRNA in HUVECs (C), as determined by qRT-PCR.

(D–H) At 48 hrpf, whole-mount in situ hybridizations show that klf2a is misexpressed within the entire endocardium of krit1ty219c and ccm2m201 mutants (D–F) and is elevated within arteries and veins in the tail region (asterisk) of ccm2m201 mutants (H) compared to WT embryos (G). Statistical data are means and SEM; p < 0.05; p < 0.01; p < 0.001; p < 0.0001; see Supplemental Experimental Procedures for details about statistical data analysis.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32, Renz, M., Otten, C., Faurobert, E., Rudolph, F., Zhu, Y., Boulday, G., Duchene, J., Mickoleit, M., Dietrich, A.C., Ramspacher, C., Steed, E., Manet-Dupé, S., Benz, A., Hassel, D., Vermot, J., Huisken, J., Tournier-Lasserve, E., Felbor, U., Sure, U., Albiges-Rizo, C., Abdelilah-Seyfried, S., Regulation of β1 Integrin-Klf2-Mediated Angiogenesis by CCM Proteins, 181-190, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
