Fig. 8

ID
ZDB-IMAGE-150205-1
Genes
Source
Figures for Warga et al., 2013
Figure Caption

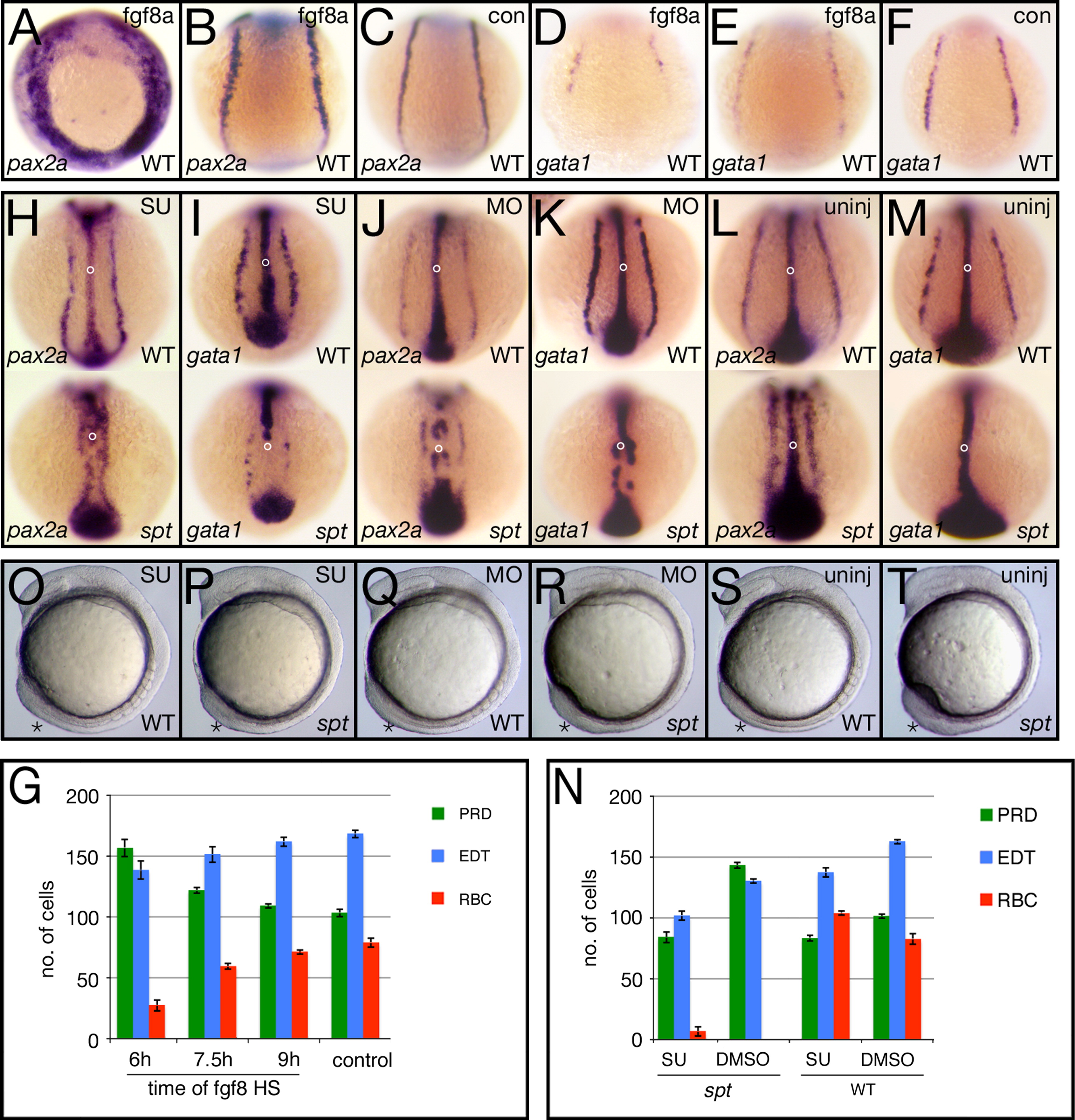

Fig. 8 Altering Fgf8a signaling activity changes the balance of intermediate mesoderm-derived fates. (A–G) Overexpressing fgf8a by heat-shock effects individual intermediate mesoderm fates differently. (A–F) in situ analysis at 12 h after heat shock of the transgene at 6 h showing different examples of the phenotypes. Control siblings (con) not carrying the transgene, were also heat-shocked. pax2a expression identifies pronephric precursors (PRD), gata1 expression identifies red blood precursors (BLD) and (not shown) fli 1a expression identifies endothelial precursors (EDT). (G) Quantification of precursor cells at 12 h after heat shock at 6, 7.5 or 9 h. Graphs show the average number of cells per fate and the standard error. (H–T) Inhibiting Fgf8a activity effects individual intermediate mesoderm fates in an opposite manner to overexpression. (H–M) in situ analysis at 12 h of embryos exposed to Su5402 for 1 h at 6 h (H, I), injected at the 2 to 8-cell stage with the fgf8a morpholino (K, L) and their uninjected siblings (L, M). Embryos were also probed with ntl to monitor the effect on morphogenesis (open circle designates the notochord). Note that the tailbud marked by ntl expression is also smaller in all the SU5402 treated and fgf8a morphant embryos. (N) Quantification of precursor cells at 12 h after exposure to SU5402 for 1 h at 6 hours. (O–T) Live embryos depicting the tailbud phenotype after 1 h exposure to Su5402 at 6 h (O, P), or following injection of the fgf8a morpholino (Q, R) and their uninjected siblings (S, T). Embryos are shown from a (A–F and H–M) dorsal posterior view, or (O–T) left side view; asterisk designates the tailbud.
