Fig. S2

ID
ZDB-IMAGE-140807-39
Genes
Source
Figures for Kim et al., 2014
Figure Caption

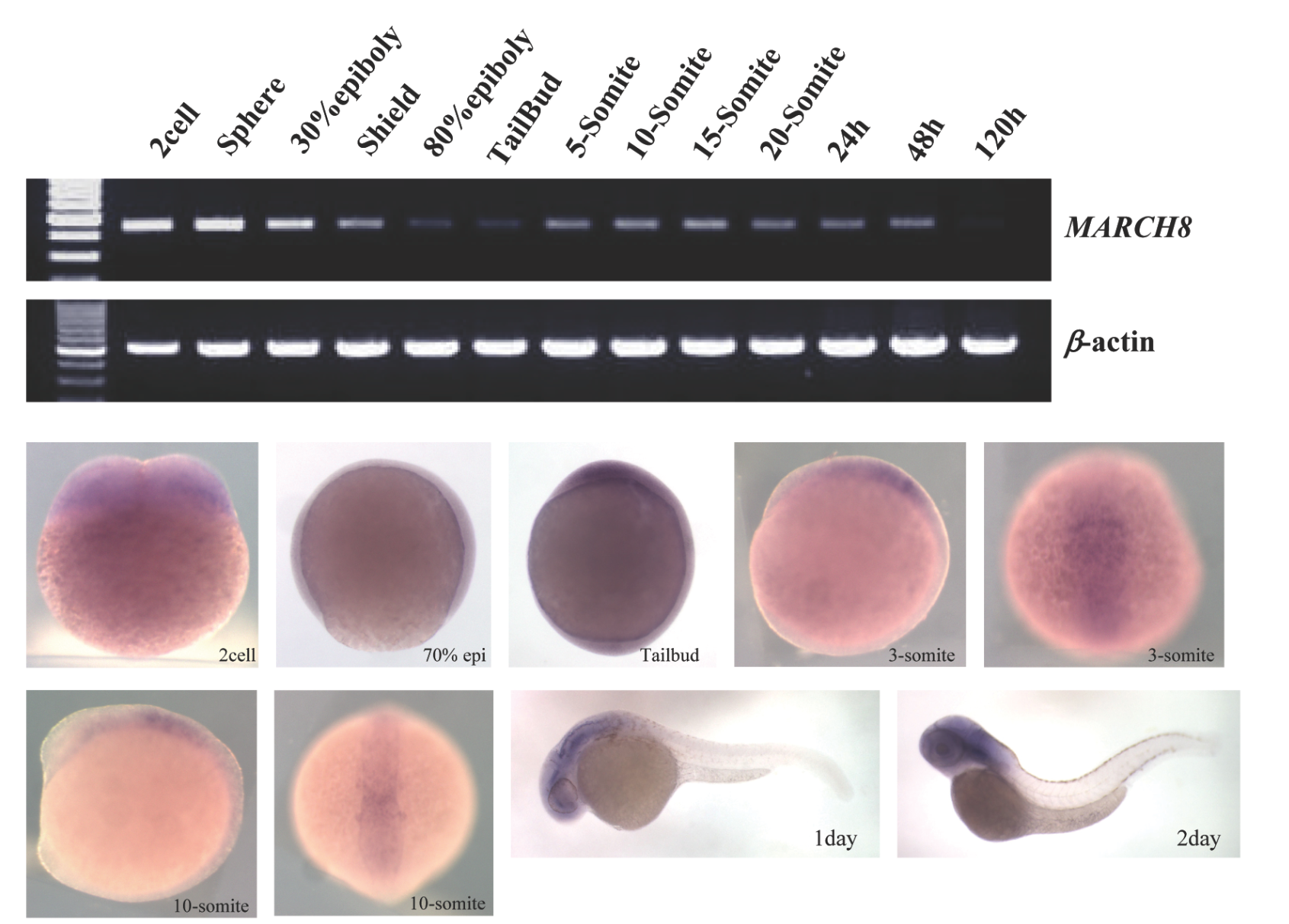

Fig. S2 Expression pattern of march8 during embryogenesis. (A) Total RNA was extracted from staged embryos, and march8 mRNA was analyzed by RT-PCR; β-actin was used as a loading control. (B) March8 mRNA expression in zebrafish embryos was detected by in situ hybridization. Shown are 2 cell, 70% epiboly and tailbud stage; lateral views with animal pole on top. Three and 10 somite; left: lateral view with dorsal to the right; right: dorsal view anterior to the top. One and two day embryos; lateral view with anterior to the left.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
