Fig. S3

ID
ZDB-IMAGE-140716-14
Source
Figures for Sampaio et al., 2014
Figure Caption

Fig. S3

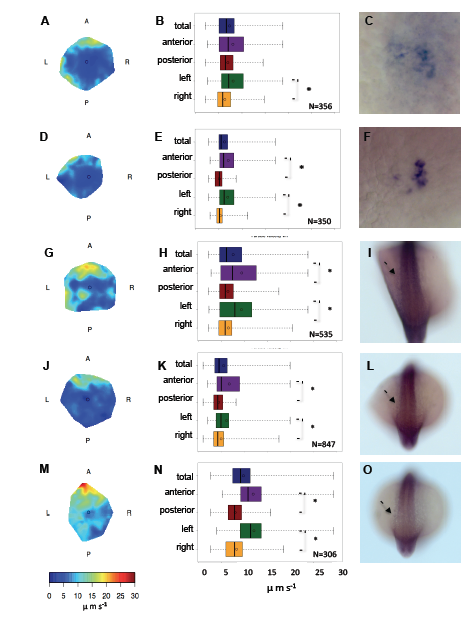

Correlation between normal fluid flow and early left-right markers, Related to Figure 6. (A-F) Wild-type embryos with flows higher than 5 μms-1 with stronger left sided flow reported by flow heat map (A, D) and by the quantification of flow in each KV half (B, E) showing an asymmetric charon expression on the right side of the KV (C, F). (G-O) Wild-type embryos with strong left sided anterior flow reported by flow heat map (G, J, M) and by the quantification of flow in each KV half (H, K, N) showing an asymmetric spaw expression on the left side of the LPM (I, L, O). KV Kupffer’s vesicle; LPM lateral plate mesoderm; N number of particle tracks measured in each embryo. Arrows indicate spaw expression; boxplot whiskers represent the minimum and maximum of all of the data.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 29(6), Sampaio, P., Ferreira, R.R., Guerrero, A., Pintado, P., Tavares, B., Amaro, J., Smith, A.A., Montenegro-Johnson, T., Smith, D.J., Lopes, S.S., Left-Right Organizer Flow Dynamics: How Much Cilia Activity Reliably Yields Laterality?, 716-28, Copyright (2014) with permission from Elsevier. Full text @ Dev. Cell
