Figure Caption
Fig. S11

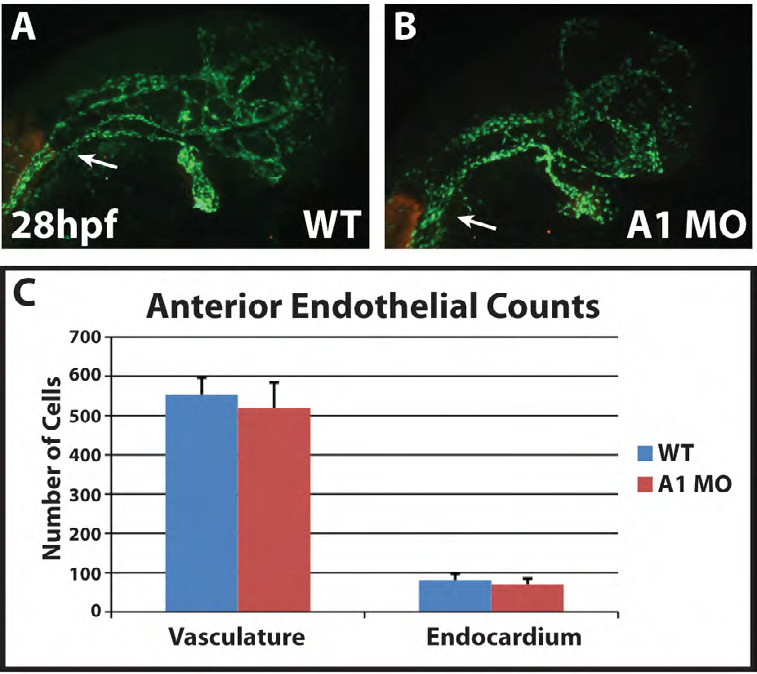

Cyp26a1 deficient embryos have normal anterior endothelial cell number. (A,B) Immunostained Tg(kdrl:nEGFP) embryos. Despite a modest truncation in endothelial progenitor markers in Cyp26a1 deficient embryos, there is no difference in cranial endothelial cell number in Cyp26a1 deficient embryos compared to siblings at 28 hpf. (C) Cranial endothelial cell counts at 28 hpf.
