Fig. 3

ID
ZDB-IMAGE-140522-18
Genes
Source
Figures for Takayama et al., 2014
Figure Caption

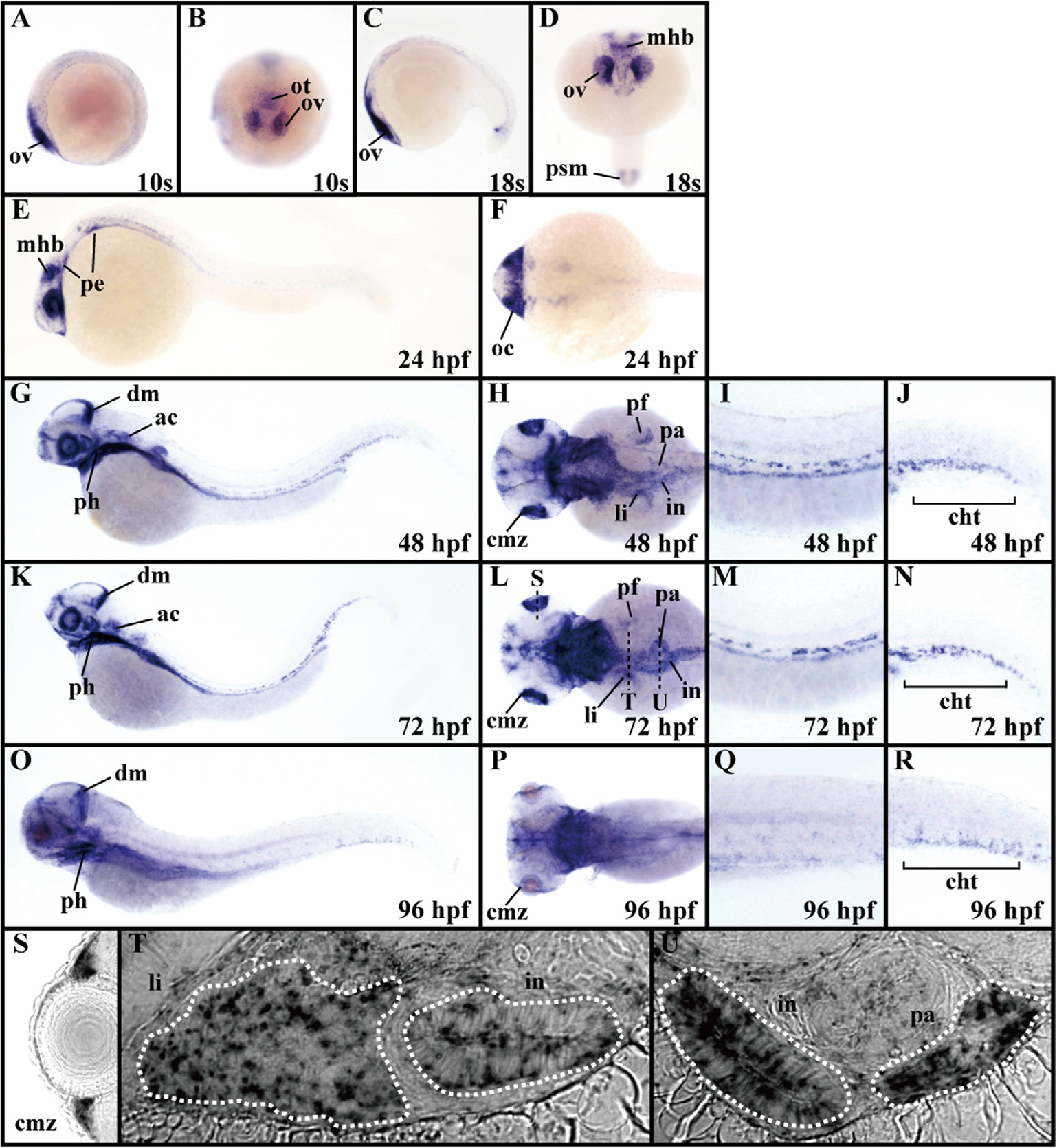

Fig. 3 Expression patterns of dnmt4 in zebrafish embryos and larvae. (A–R) dnmt4 expression was examined by whole-mount in situ hybridization at the 10s and 18s stages as well as at 24, 48, 72, and 96 hpf. Lateral views, anterior to the left (A, C, E, G, K, and O). Dorsal views, anterior to the bottom (B and D). Dorsal views, anterior to the left (F, H, L, and P). Magnified views of the agm (I, M, and Q) and cht (J, N, and R) in (G), (K), and (O). (S–U) Cross and transverse sections showing dnmt4 expression at 72 hpf. The cross and transverse sections were cut at the level indicated by the dashed black lines in (L). ac, auditory capsule; cht, caudal hematopoietic tissue; cmz, ciliary marginal zone; dm, dorsal midbrain; in, intestine; li, liver; mhb, midbrain-hindbrain boundary; oc, optic cup; ot, optic tectum; ov; optic vesicle; pa, pancreas; pe, pharyngeal endoderm; pf, pectoral fin buds; ph, pharyngeal arches; psm, presomitic mesoderm.
