Fig. S1

Myogenesis Suppressors Identified In Vitro also Affect Muscle Development In Vivo, Related to Figure 1

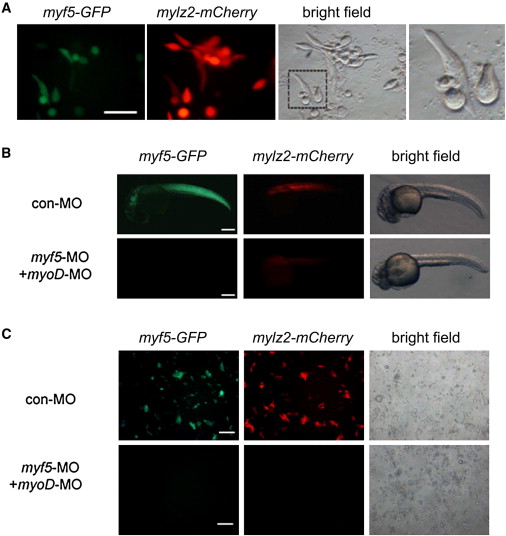

(A) Higher magnification of myf5-GFP;mylz2-mCherry blastomere cells cultured in zESC medium with bFGF. Scale bar represents 50 μm.

(B) myf5-GFP;mylz2-mCherry embryos injected with 400pg con-MO or co-injected with 200pg myf5-MO and 200pg myoD-MO lack both myf5-GFP and mylz2-mCherry expression. Images taken at 30 hpf. Scale bars represent 200 μm.

(C) myf5-GFP;mylz2-mCherry embryos injected with 400pg con-MO or co-injected with 200pg myf5-MO and 200pg myoD-MO were disassociated at the oblong stage and cultured in zESC medium with bFGF. No myf5-GFP or mylz2-mCherry expression was detected in the culture of double morphants. Images were taken 26 hr after plating. Scale bars represent 200 μm.
