Fig. 4

ID
ZDB-IMAGE-140404-4
Source
Figures for Gray et al., 2014
Figure Caption

Fig. 4

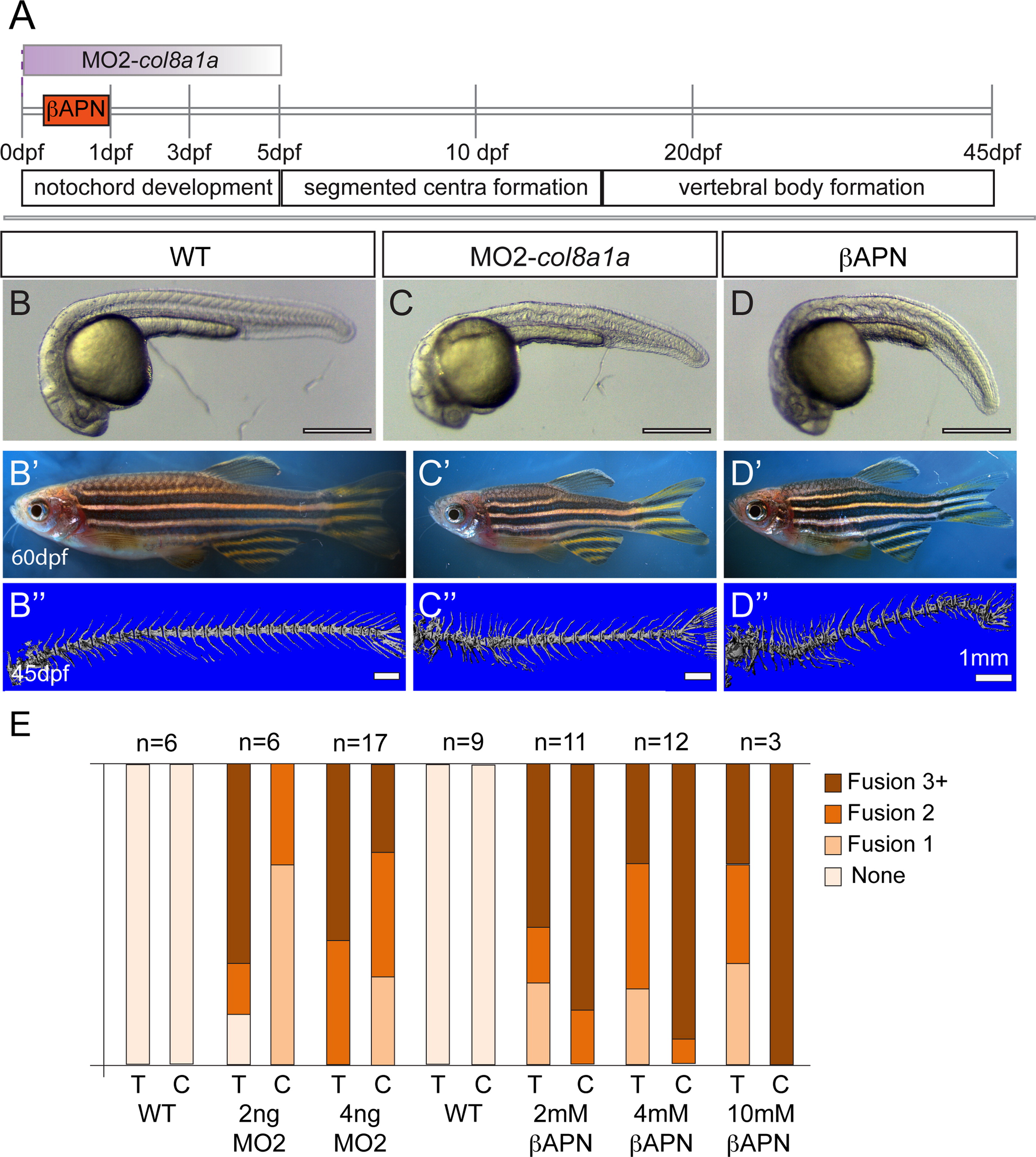

Embryonic inhibition of col8a1a function or lysyl oxidases is sufficient to generate vertebral defects. (A) Timeline of vertebral column development in zebrafish. In one experiment, the injection of MO2-col8a1a at the 1-cell stage, is effective in blocking the splicing of col8a1a until~3–5dpf (purple gradient bar) (C–C′′). In the second experiment the lysyl oxidases inhibitor, βAPN, is added at 4hpf and washed out at 1dpf (orange bar) (D–D3). Both treatments completed well before the onset of centra formation started in the anterior regions at 5dpf. Representative brightfield images of 1dpf (B, C, and D) and 60dpf (B′, C′, D′) and microCT images (45dpf) (B′′, C′′, D′′) of WT (B–B′′), MO2-col8a1a injected (C–C′′), and βAPN pulsed adult zebrafish (D–D′′). (D) Categorical frequency of VM for 2 and 4 ng MO2-col8a1a morpholino injected adults and uninjected WT siblings and 2, 4, and 10 mM βAPN treated adults and DMSO treated sibling controls for both thoracic (T) and caudal (C) regions. Scale bars for (B, C, and D)=4 mm, (B′, C′, D′)=5 mm, and (B′′, C′′, D′′)=1 mm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 386(1), Gray, R.S., Wilm, T.P., Smith, J., Bagnat, M., Dale, R.M., Topczewski, J., Johnson, S.L., and Solnica-Krezel, L., Loss of col8a1a function during zebrafish embryogenesis results in congenital vertebral malformations, 72-85, Copyright (2014) with permission from Elsevier. Full text @ Dev. Biol.
