Fig. 6

ID
ZDB-IMAGE-140326-14
Source
Figures for Childs et al., 2002
Figure Caption

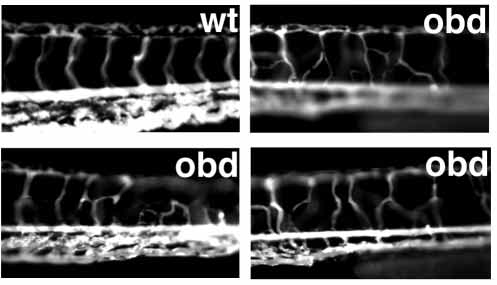

Fig. 6 obd ISVs are patent but tortuous. Angiograms of the trunk region of wild-type and three obd mutants demonstrate the abnormal and variable pattern of patent obd mutant ISVs. The spacing of ISVs in obd appears most affected ventrally where the vessels originate, as opposed to dorsally where they terminate.
