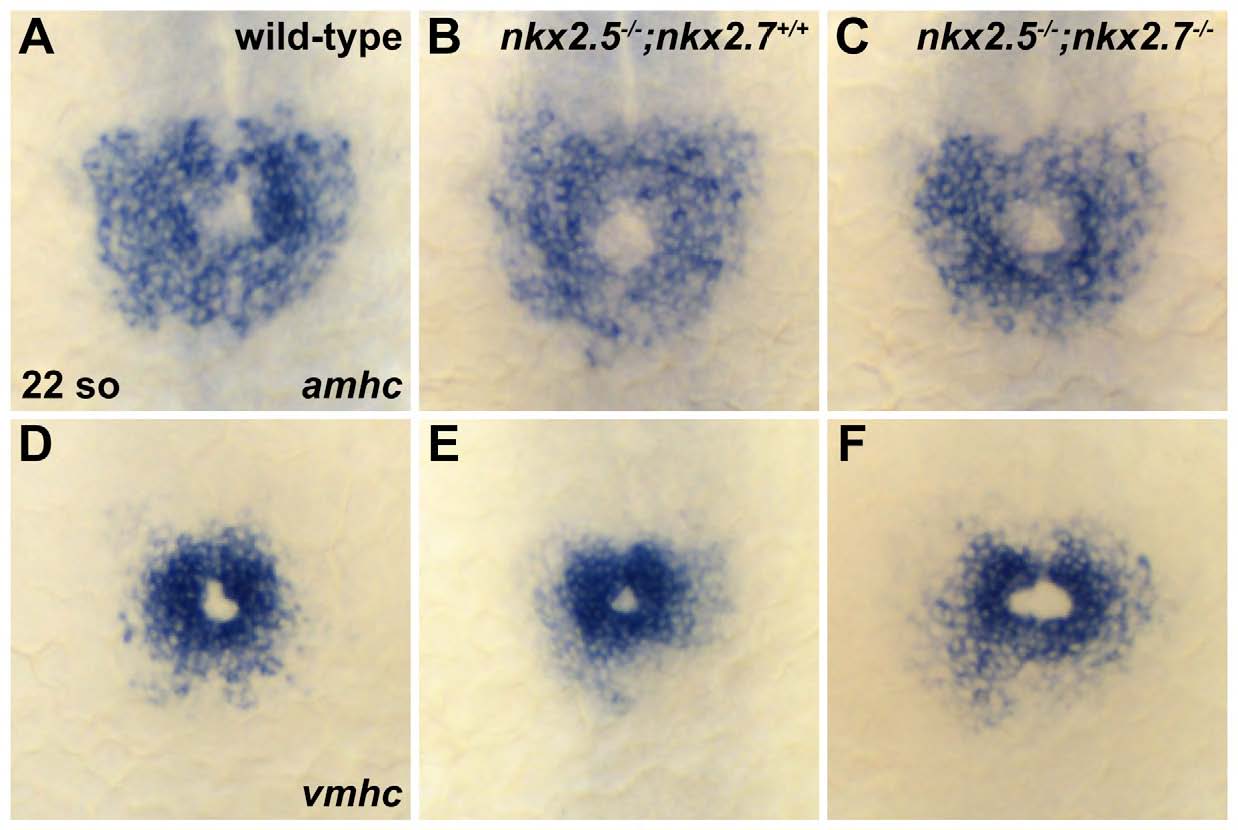

Fig. S3 Normal differentiation and fusion of bilateral cardiac precursor populations in nkx2.5 mutant and nkx2.5-/-;nkx2.7-/- double mutant embryos. (A-F) In situ hybridization depicts expression of amhc (A-C) and vmhc (D-F) in wildtype (A,D), nkx2.5 mutant (B,E), and nkx2.5-/-;nkx2.7-/- double mutant (C,F) embryos. Dorsal views, anterior to the top, at the 22 somite stage. Gene expression patterns appear normal in nkx2.5 mutant and nkx2.5-/-;nkx2.7-/- double mutant embryos; no expansion or reduction of atrial or ventricular precursor populations is evident.
