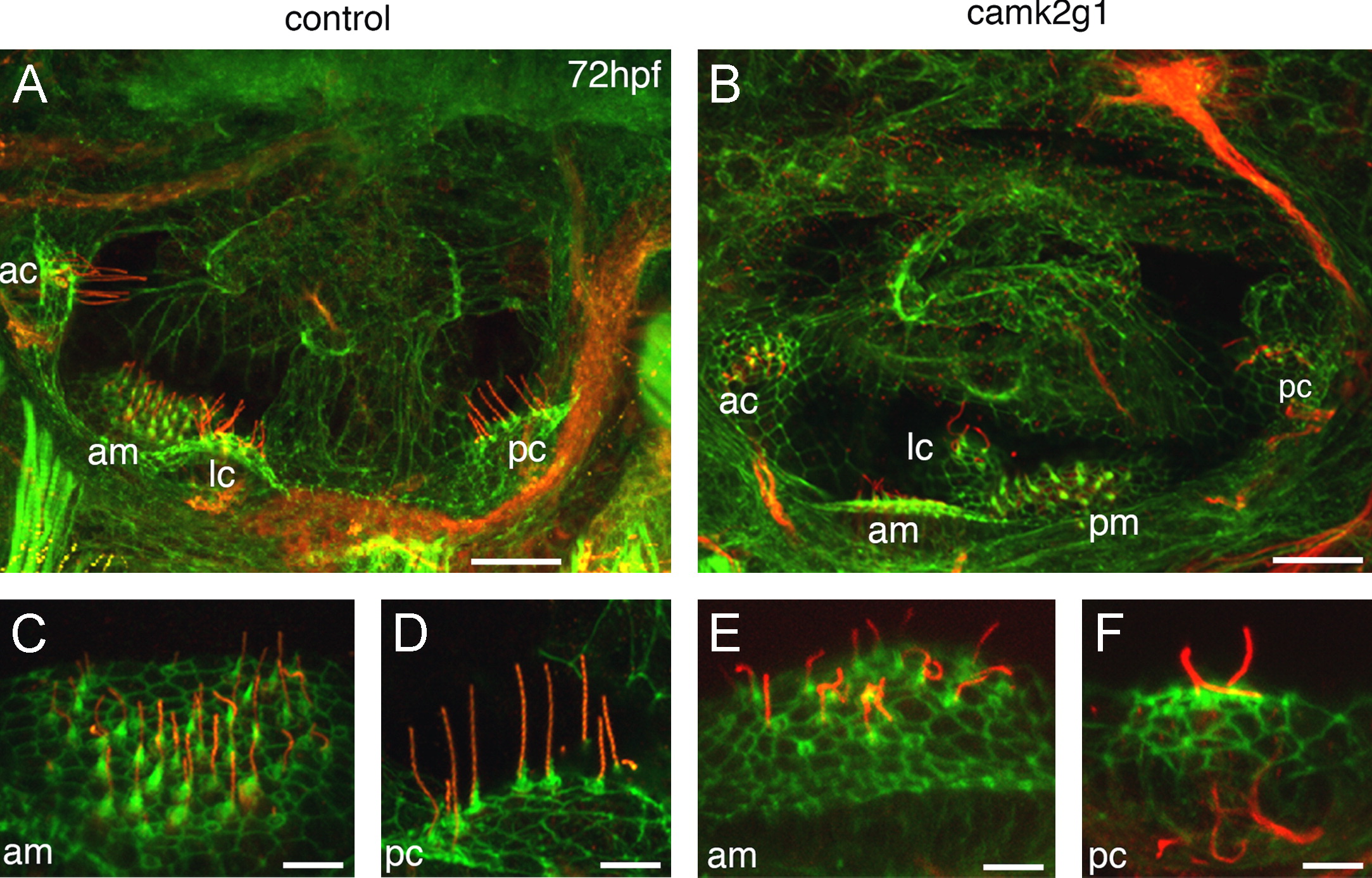

Fig. 5 Formation of maculae and cristae in camk2g1 morphants. Control (A, C, D) and camk2g1 morphants (B, E, F) at 72 hpf were stained for F-actin (green) and acetylated tubulin (red). Sensory patches include anterior macula (am), posterior macula (pm), anterior crista (ac), lateral crista (lc) and posterior crista (pc). The posterior macula is out of view in the control image. Anterior is to the left. Scale bars=20 μm (A, B) and 5 μm (C–F).
