Figure Caption
Fig. 6

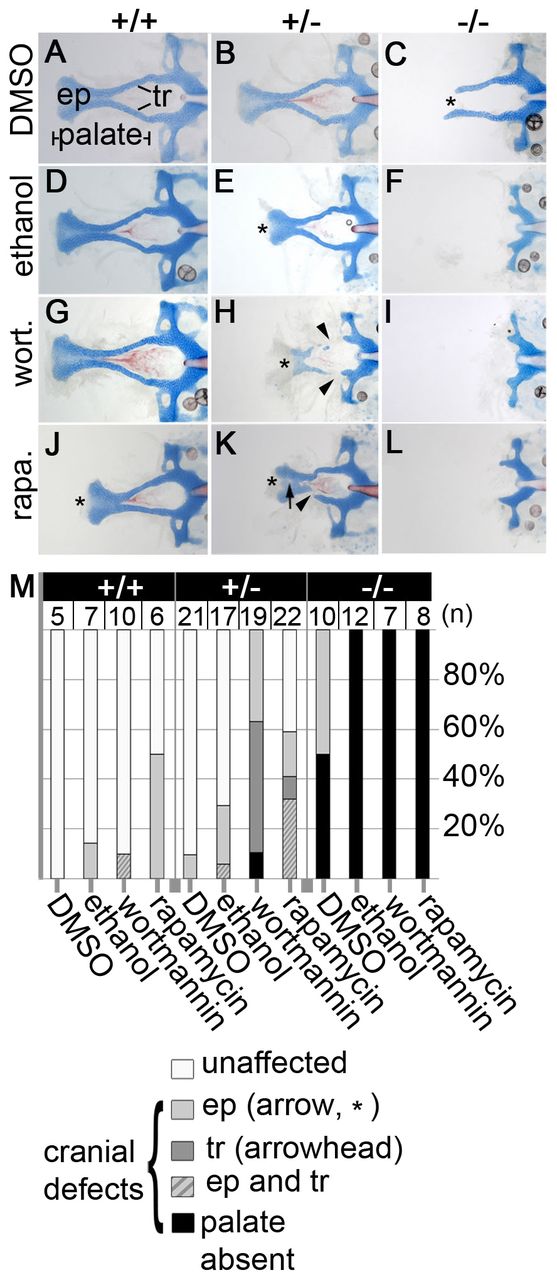

Wortmannin and rapamycin phenocopy ethanol-treated pdgfra mutants. (A-L) 5 dpf zebrafish neurocrania embryos were treated at 10-24 hpf with (A-C) DMSO, (D-F) 1.0% ethanol, (G-I) 1.5 μM wortmannin or (J-L) 3 μM rapamycin. Asterisks indicate ethmoid-plate defects (ep); arrowheads indicate trabeculae defects (tr). (M) Graph of percentage defects found in all three genotypes, across treatments. Unaffected, wild-type phenotype; ep, ethmoid-plate defects (arrow and asterisk in K); tr, trabeculae defects (arrowheads in H).
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Development
