Fig. 4

ID
ZDB-IMAGE-130808-15
Source
Figures for Roca et al., 2013
Figure Caption

Fig. 4

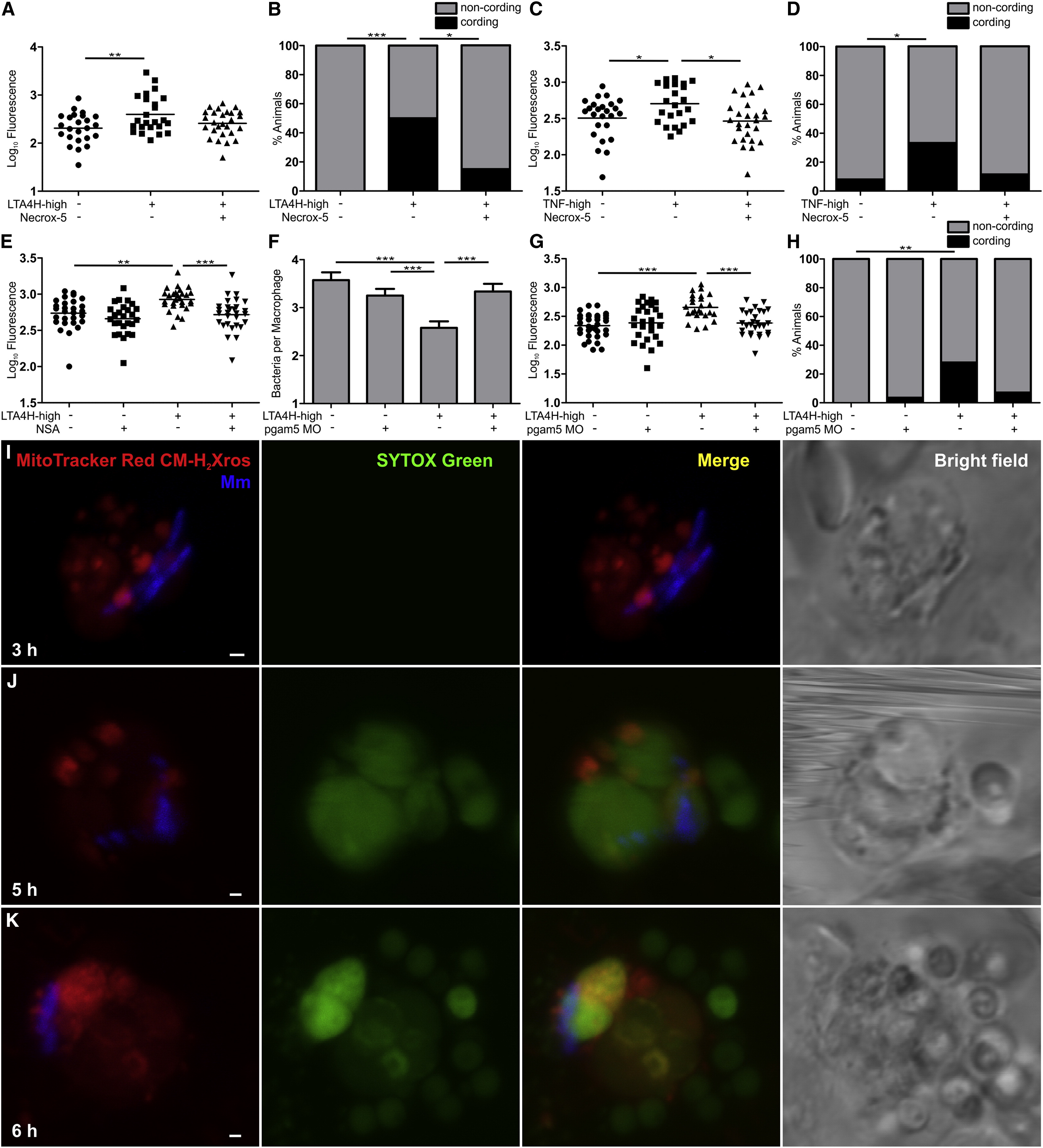

The TNF-RIP1-RIP3 Axis Mediates Necrosis of Infected Macrophages through Mitochondrial ROS Production (A) FPC in WT and LTA4H-high larvae in presence or absence of 10 μM Necrox-5. **p < 0.01 (one-way ANOVA with Tukey’s posttest). Representative of two independent experiments. (B) Percentage of animals in (A) with cording among WT and LTA4H-high larvae in presence or absence of 10 μM Necrox-5. *p < 0.05; ***p < 0.001 (Fisher’s exact test). (C) FPC in WT and LTA4H-high larvae injected with TNF or vehicle in presence or absence of 10 μM Necrox-5. *p < 0.05 (one-way ANOVA with Tukey’s posttest). (D) Percentage of animals in (C) with cording among WT and LTA4H-high larvae injected with TNF or vehicle in presence or absence of 10 μM Necrox-5. *p < 0.05 (Fisher’s exact test). (E) FPC in WT and LTA4H-high larvae in presence or absence of 10 μM Necrosulfonamide (NSA). **p < 0.01; ***p < 0.001 (one-way ANOVA with Tukey’s posttest). Representative of three independent experiments. (F) Mean (±SEM) number of bacteria per infected macrophage in WT and PGAM5 morphant siblings on WT or LTA4H-high background. ***p < 0.001 (one way ANOVA with Tukey’s posttest). Representative of two independent experiments. (G) FPC in WT and PGAM5 morphant siblings on WT or LTA4H-high background. ***p < 0.001 (one-way ANOVA with Tukey’s posttest). Representative of two independent experiments. (H) Percentage of animals in (G) with cording among WT and PGAM5 morphants on WT or LTA4H-high background. **p < 0.01 (Fisher’s exact test). (I–K) Confocal and bright field images of different infected macrophages in 1 dpi larvae 3 (I), 5 (J), or 6 (K) hr post-TNF injection. Scale bars, 1 μm. (Also see Figure S6).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 153(3), Roca, F.J., and Ramakrishnan, L., TNF Dually Mediates Resistance and Susceptibility to Mycobacteria via Mitochondrial Reactive Oxygen Species, 521-34, Copyright (2013) with permission from Elsevier. Full text @ Cell
