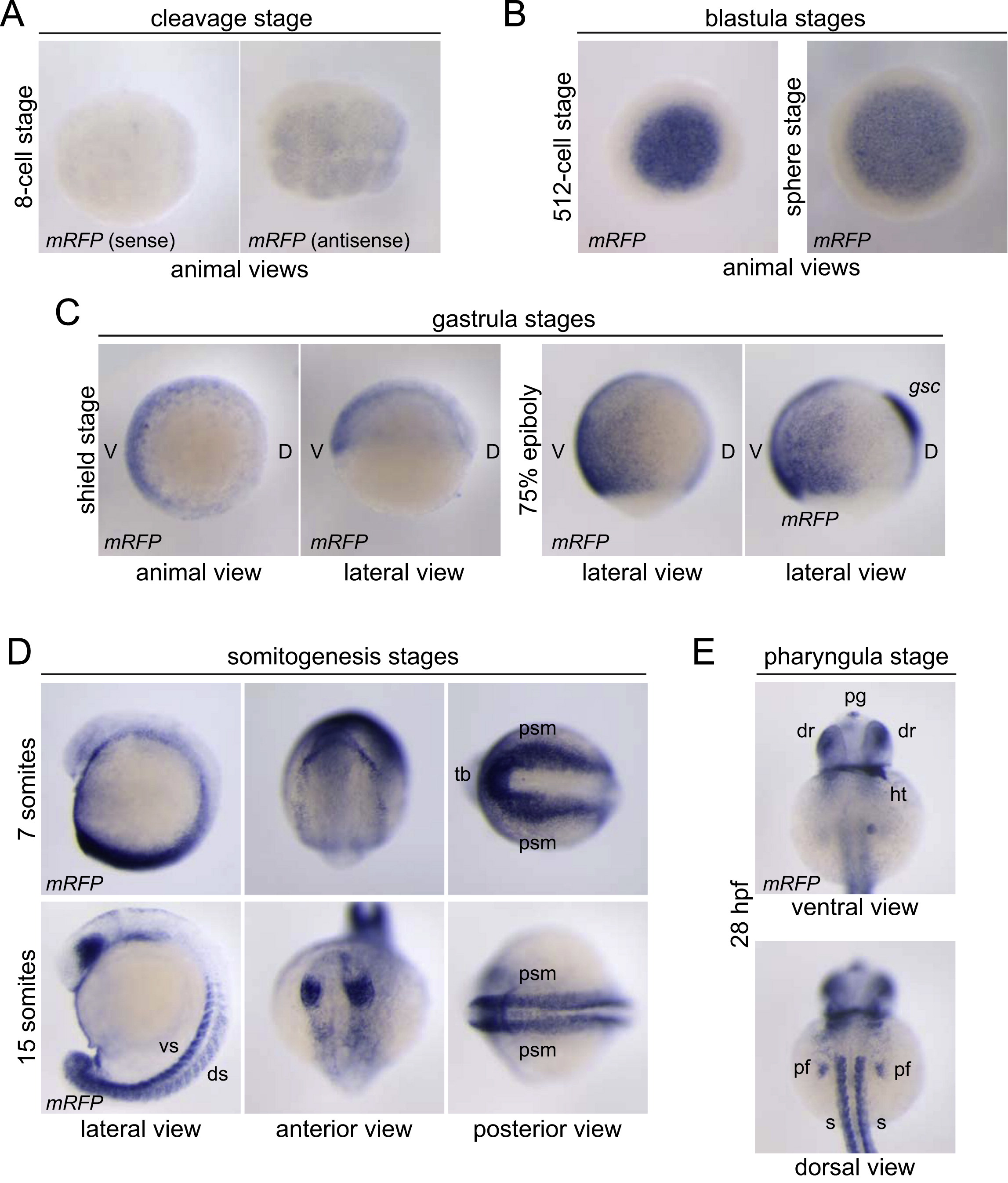

Fig. 1 mRFPmRNA expression in BRE-mRFPzebrafish embryos ((A)–(E)) ISH for mRFP mRNA in BRE-mRFP embryos. In the rightmost panel of (C), double ISH with mRFP and the dorsal marker goosecoid (gsc). V, ventral; D, dorsal; vs, ventral somites; ds, dorsal somites; tb, tailbud; psm, presomitic mesoderm; pg, pineal gland; dr, dorsal retina; ht, heart tube; pf, pectoral fin bud; s, somites.
