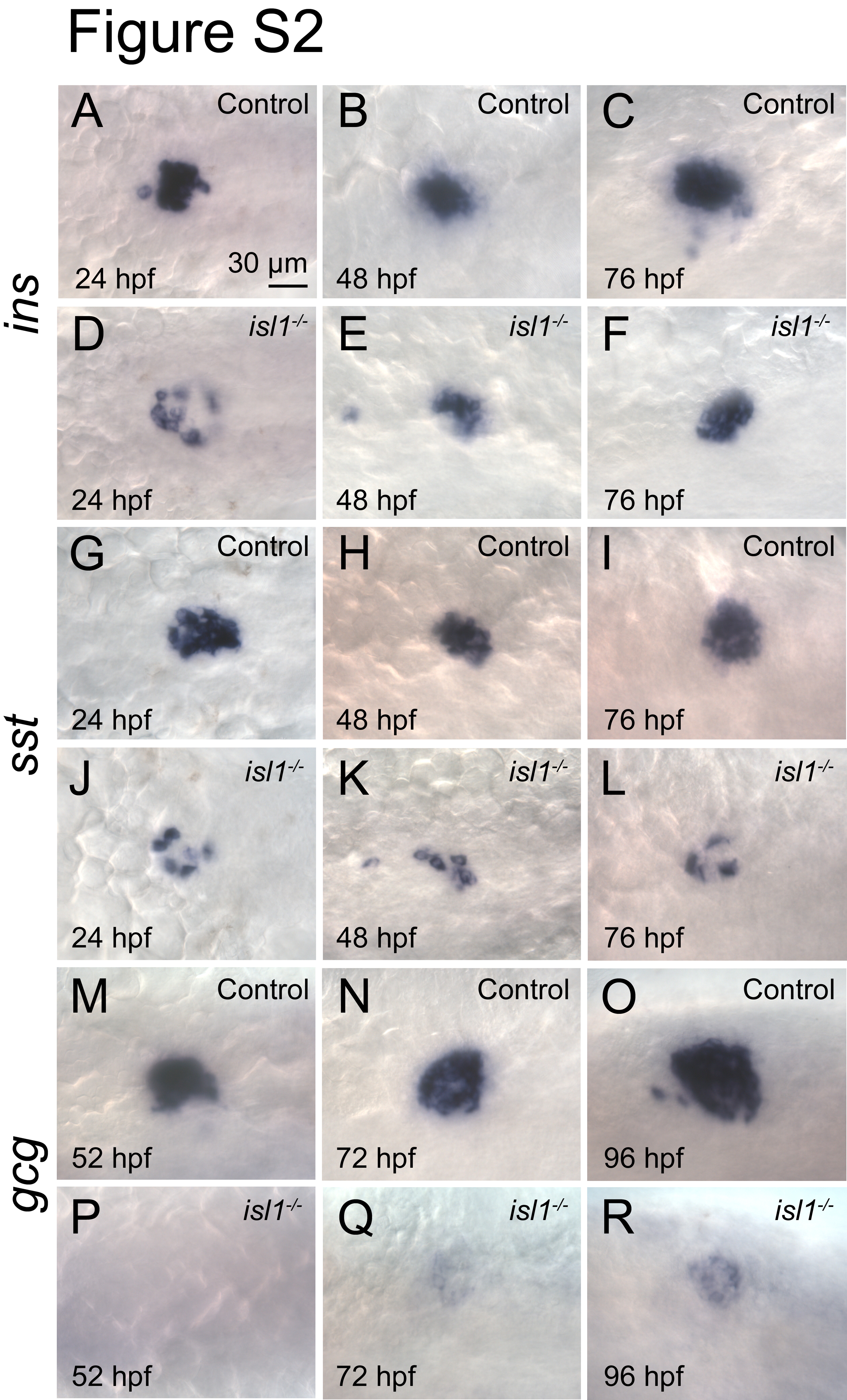

Fig. S2 Expression of ins, sst and gcg mRNA in control and isl1 mutants mRNA expression of ins (A–F), sst (G–L) and gcg (M–R) in the pancreatic islets of control embryos and isl1 mutants at the indicated stages. Note that in mutants the expression of ins and sst is strongly reduced at all stages analyzed, while glu is virtually absent at 52 hpf and strongly reduced at older stages. Images show a dorsal view with anterior to the left.
