Figure Caption

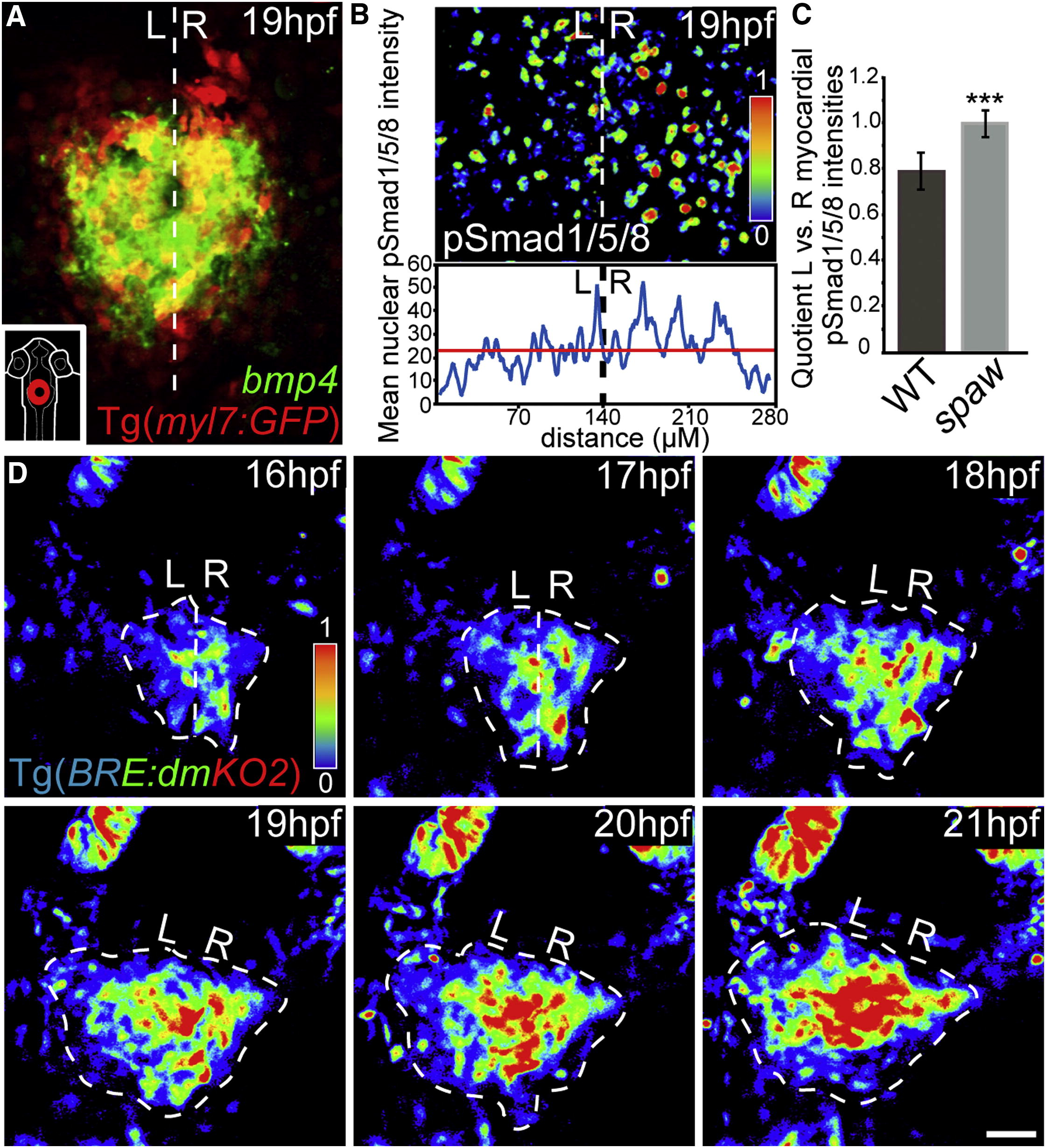

Fig. 1 Bmp Signaling Is Weaker within the Left Heart Cone prior to the Appearance of Morphological Asymmetries(A) Fluorescence two-color in situ hybridization of bmp4 expression at the heart cone stage (false-colored image).(B) Cardiac progenitor cells have lower nuclear pSmad-1/5/8 intensities on the left side of the heart as indicated by the color range. The mean intensity plot is a measure of the entire intensities within the field of view.(C) The L/R asymmetry of nuclear pSmad-1/5/8 intensities is abolished in spaw morphant embryos at 19 hpf (mean with SD based on quantifications of eight hearts per genotype; p < 0.0005).(D) The laterality of cardiac jogging coincides with lower intensities of Bmp signaling activity as indicated by the Bmp reporter line Tg[BRE-AAVmlp:dmKO2]mw40 (false-colored image). White dotted line indicates the embryonic midline. Scale bar, 50 μm. L, left; R, right.See also Figures S1, S2, and Movie S1.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 24(6), Veerkamp, J., Rudolph, F., Cseresnyes, Z., Priller, F., Otten, C., Renz, M., Schaefer, L., and Abdelilah-Seyfried, S., Unilateral dampening of bmp activity by nodal generates cardiac left-right asymmetry, 660-667, Copyright (2013) with permission from Elsevier. Full text @ Dev. Cell
