Fig. S1

ID
ZDB-IMAGE-130211-1
Source
Figures for Nair et al., 2013
Figure Caption

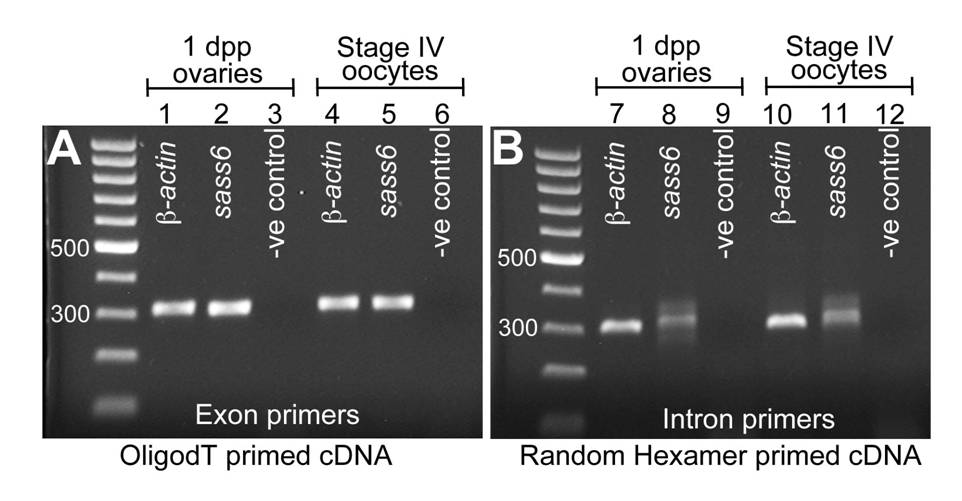

Fig. S1 Mature mRNAs are present during very early stages of oogenesis. RT-PCRs for exonic (A) and intronic (B) transcripts for β-actin and sass6 from whole ovaries day 1 post-purging (lanes 1, 2, 7, 8) and from stage IV oocytes (lanes 4, 5, 10, 11). Mature mRNAs for β-actin and sass6 isolated by oligodT priming are present in ovaries at day 1 post-purging (lanes 1, 2) and in stage IV oocytes (lanes 4, 5). Pre-spliced immature mRNAs for β-actin and sass6 isolated by random hexamer priming are also present in ovaries at day 1 post-purging (lanes 7, 8) and in stage IV oocytes (lanes 10, 11). For the negative controls (lanes 3, 6, 9 12) the respective total RNA samples was used as template in the PCR reaction with β-actin primers, to confirm that the RNA used for cDNA synthesis was free of genomic DNA.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
