Fig. s4

ID
ZDB-IMAGE-130104-3
Source
Figures for Bielen et al., 2012
Figure Caption

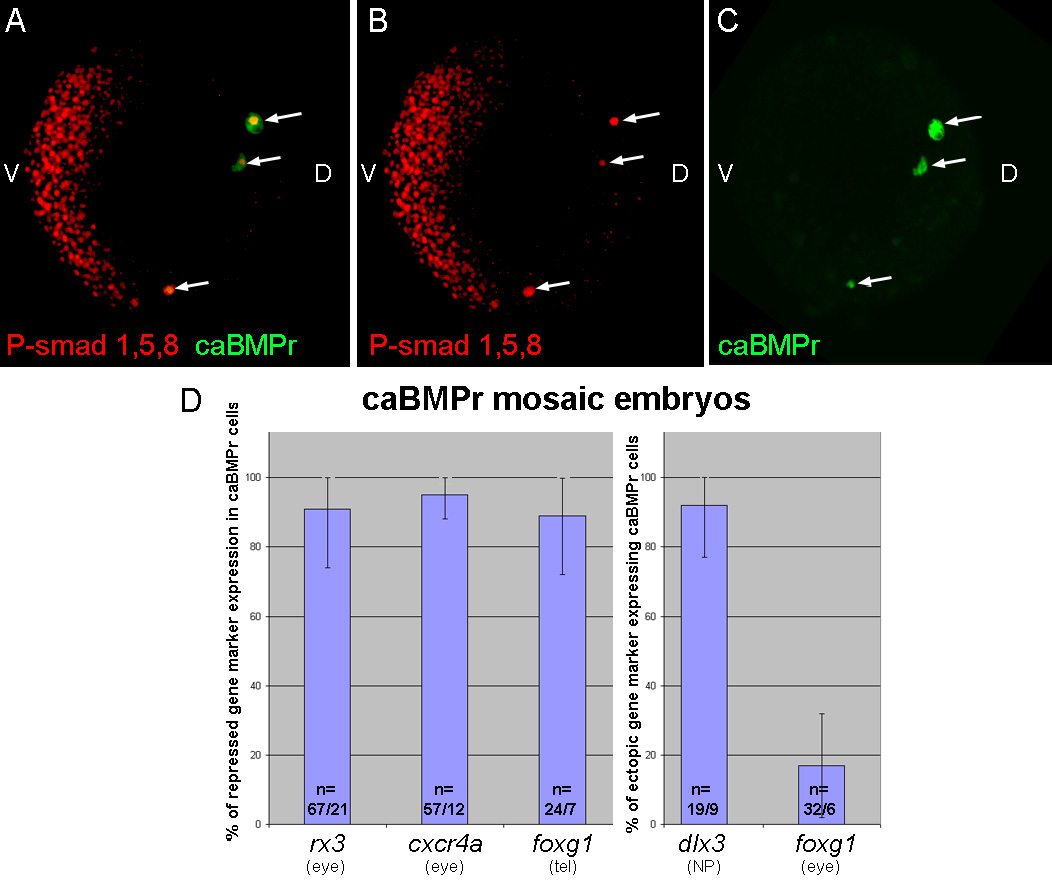

Fig. s4 High levels of Psmad1,5,8 are induced cell autonomously in caBMPr transgenic cells causing robust changes of neural marker expression (A-C) Animal view of a mid gastrula caBMPr mosaic embryo stained for P-smad1,5,8 in red, shield to the right. Arrows point to single caBMPr-transgenic cells (green cells) in the dorsal half of the embryo which ectopically induce nuclear P-smad1,5,8 (red) in a cell autonomous manner. (D) Statistical analysis of repressed and induced gene expression in caBMPr cells, respectively. n=number of cells/ number of embryos. (tel, telencephalon; NP, neural plate).
