Fig. S2
|
Figure Caption

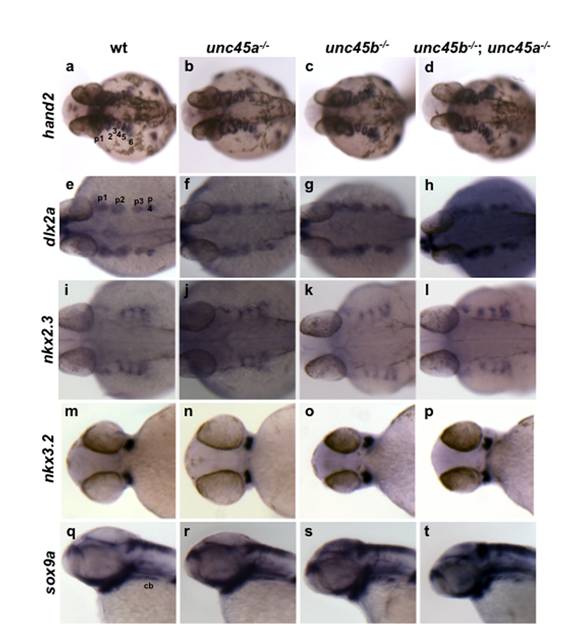

Fig. S2 Pharyngeal arch formation and patterning of unc45 mutants is consistent with that of wild type siblings. Wild type siblings (a,e,i,m,q), unc45a-/- (b,f,j,n,r), unc45b-/- (c,g,k,o,s), and unc45b-/-; unc45a-/- (d,h,l,p,t) embryos. Expression of: hand2 at 30 hpf (a-d), dlx2a at 30 hpf (e-h), nkx2.3 at 36 hpf (i-l), nkx3.2 at 52 hpf (m-p), and sox9a at 48 hpf (q–t). Dorsal (a-d, e-h, i-l), ventral (m-p) and lateral (q-t) views. cb, ceratobranchial; p, pharyngeal arch. Numbers denote pharyngeal arch number.
