Fig. 2

ID
ZDB-IMAGE-121214-18
Genes
Source
Figures for Stahlhut et al., 2012
Figure Caption

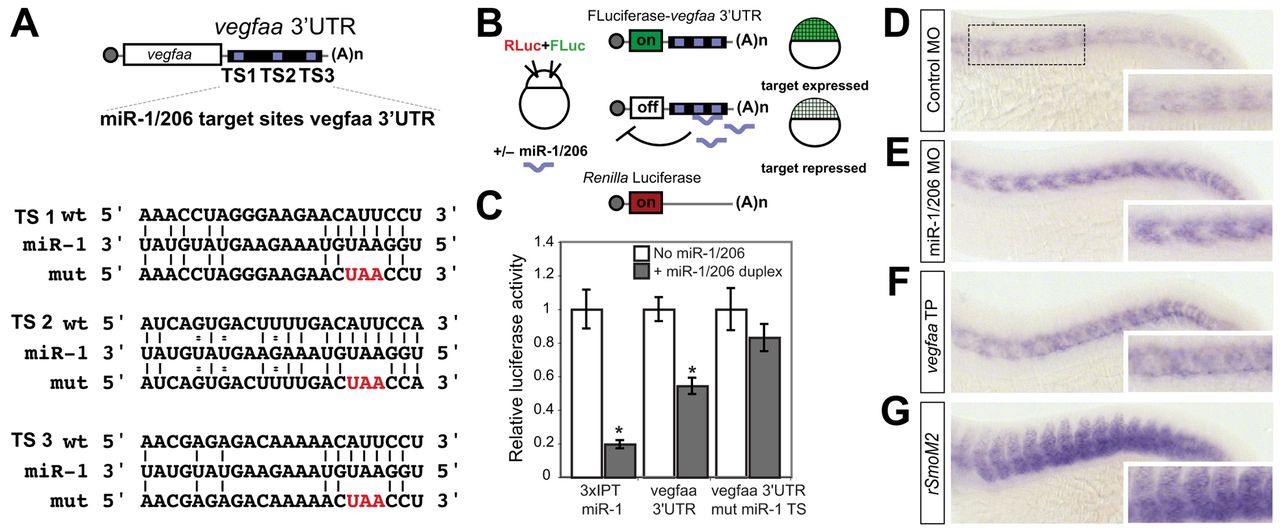

Fig. 2 miR-1/206 regulate the expression of vegfaa. (A) The zebrafish vegfaa 3′UTR, indicating the sequence of each miR-1/206 target site (TS1-3), the alignment of each TS with miR-1, and the sequence of the mutant reporter in which the seed sequence complementary to miR-1/206 has been mutated from ACAUUCCU to ACUAACCU (mut). (B) The luciferase assay to test the functionality of the TS in the vegfaa 3′UTR. Embryos were co-injected with a firefly luciferase reporter containing the 32UTR of vegfaa and a control Renilla luciferase reporter, in the presence (+) or absence of miR-1 and miR-206 duplex miRNA. (C) The TSs in vegfaa are functional and necessary for miR-1/206-mediated repression. miR-1/206 downregulate the luciferase activity expressed from the luciferase-vegfaa 32UTR reporter (vegfaa 32UTR) compared with the Renilla control. A luciferase reporter construct containing a 32UTR with mutated miR-1/206 TS (vegfaa 32UTR mut miR-1 TS) is not significantly repressed by the miR-1/206 duplex. As a positive control for repression, a luciferase reporter containing three partially complementary TSs for miR-1/206 (3×IPT miR-1) was downregulated in the presence of miR-1/206 duplex. Mean ± s.d.; *P<0.01, Student′s t-test. (D-G) In situ hybridization to detect vegfaa expression at 24 hpf in embryos injected at the one-cell stage with control MO (D), miR-1/206 MO (E), vegfaa-TPmiR-1 (F) or dominant-active rat Smo mRNA (rSmoM2) (G). Note that blocking miR-1/206 function with miR-1/206 MO (E), miR-1/206 activity on vegfaa using target protectors (F), or upregulating the Shh pathway (G) increases the levels of vegfaa mRNA.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
