Genes
Source
Figures for Weiss et al., 2012
Figure Caption

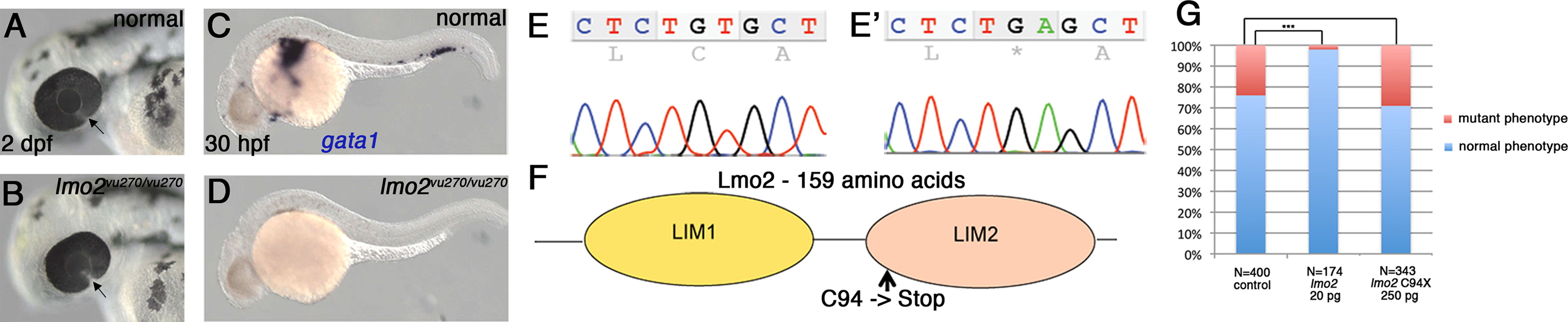

Fig. 1 lmo2 mutant zebrafish embryos. (A and B) Heads of normal (A) and lmo2 mutant (B) live embryos at 2 dpf. Arrows point at the optic fissure. (C and D) 30 h post-fertilization (hpf) normal (C) and lmo2 mutant (D) embryos labeled for RBC marker gata1. (E and E′) Chromatograms showing normal lmo2 (E) and mutant lmo2vu270 (E′) coding sequence at the mutation site. (F) Schematic presentation of Lmo2 protein and the site of predicted truncation in Lmo2 encoded by vu270 allele (arrow). (G) Quantification of rescue of lmo2 mutant phenotypes by injection of RNA encoding normal Lmo2 or Lmo2C94X. Numbers are summary of at least two independent experiments. (***p<0.0001).
