Fig. 4

ID
ZDB-IMAGE-121005-3
Genes
Source
Figures for Cutty et al., 2012
Figure Caption

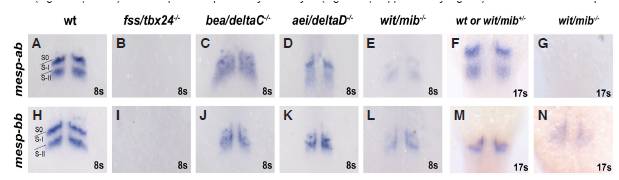

Fig. 4 Expression of mesp-ab and mesp-bb in segmentation mutants. (A,H) Wild-type, (B,I) fss/tbx24-/-, (C,J) bea/deltaC-/-, (D,K) aei/deltaD-/-, (E,L) wit/mib-/- embryos at the 8-somite stage hybridized with mesp-ab (A,E) and mesp-bb (H,L) in situ probes. (G,N) wit/mib-/- and (F,M) wild-type or wit/ mib+/- sibling embryos at 17-somite stage hybridized with mesp-ab (F, G) and mesp-bb (M,N). S0, S-I and S-II mark the position of presumptive somites. All embryos were flat-mounted and are shown in dorsal views, anterior to the top.
