Fig. S8

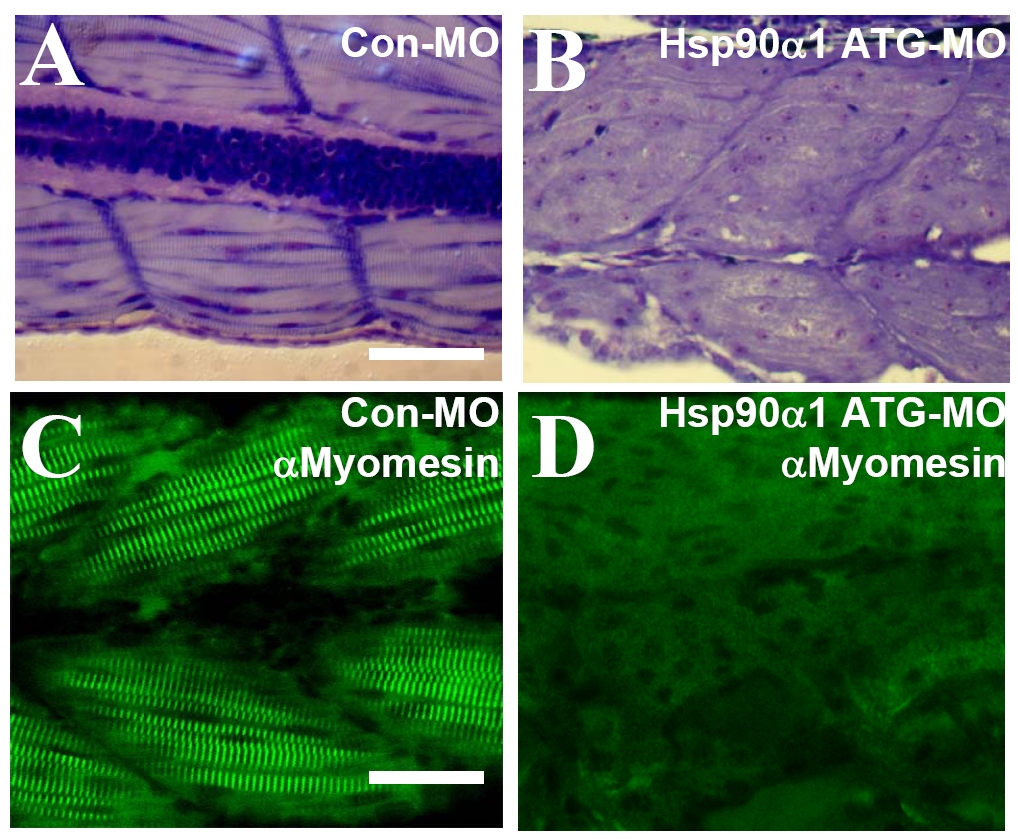

Knockdown of Hsp90a1 results in myofibril disorganization in fast muscles. (A and B) Toluidine staining on longitudinal sections showing highly organized myofibrils in fast muscles of control-MO injected embryos (A), or disorganized myofibrils in Hsp90a1 knockdown embryos (B) at 72 hpf. (C and D) High magnification showing the M-line organization in fast muscles revealed by anti-myomesin antibody in control-MO (C) or Hsp90a1 ATG-MO (D) injected embryos at 72 hpf. (Scale bars, 25 mm.)
