ZFIN Image: Avanesov et al., 2012, Fig. 4


Figure Caption

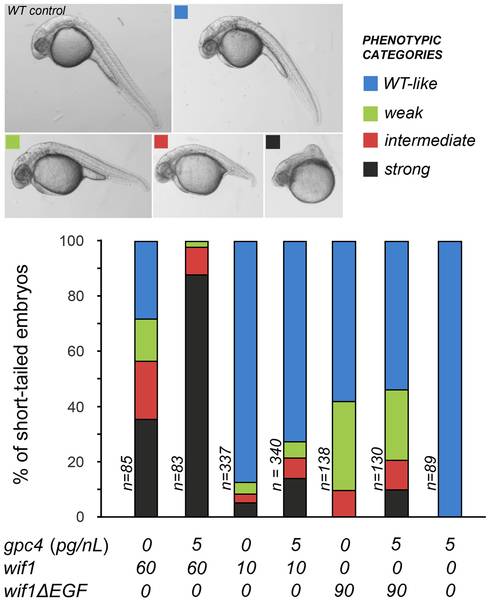

Fig. 4 Gpc4 enhances the effects of full-length Wif1 in zebrafish embryos.

Approximately 2 nL of mRNA of a given concentration was injected into one cell stage embryos, and embryos were scored at 28–30 hours post-fertilization. Images show representative examples of the penetrance of the short-tailed phenotype compared to an uninjected control. In top panels dorsal is up and anterior is to the left. Bar graphs show percentage of short-tailed embryos. The data is pooled from two independent experiments; frequencies were scored and their percentages were averaged. See Materials and Methods for information on RNA preparation.
