Figure Caption
Fig. 9

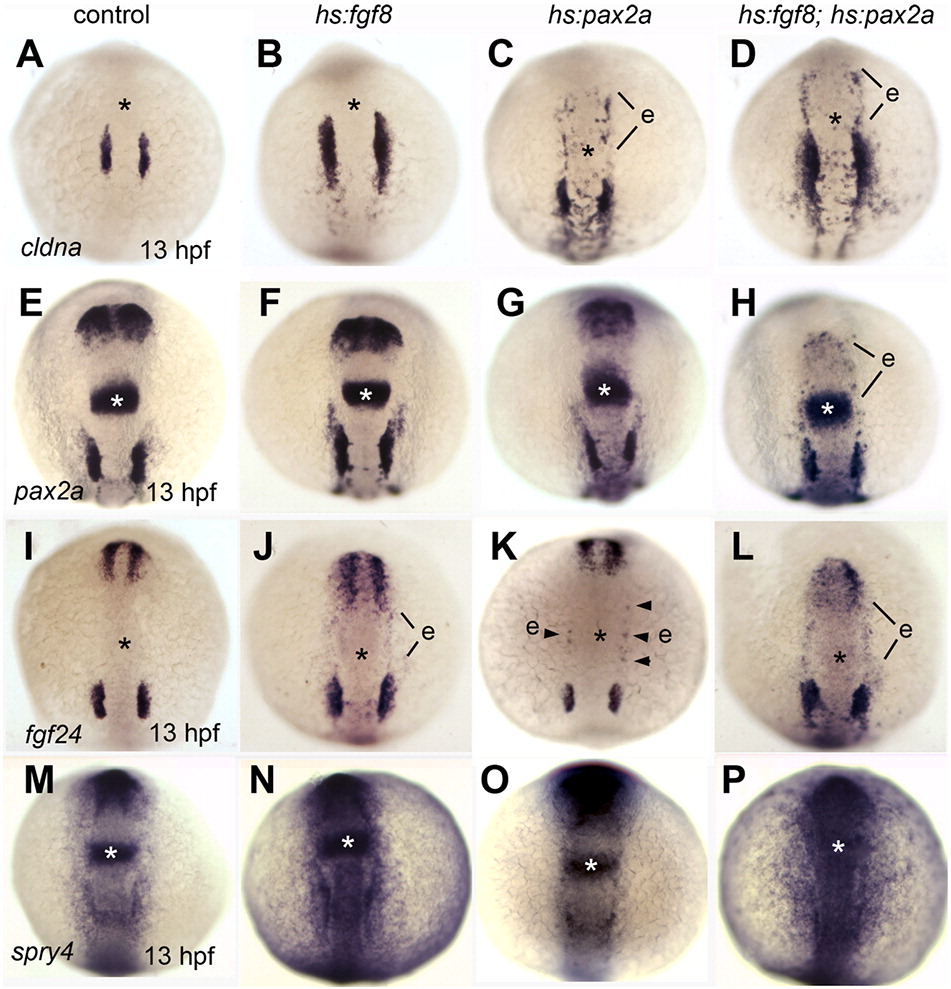

Effects of co-misexpression of Fgf8 with Pax2a on early otic development. (A–P) Dorsal views (anterior up) of embryos heat shocked at 10 hpf and fixed at 13 hpf to examine expression of cldna (A–D), pax2a (E–H), fgf24 (I–L) and spry4 (M–P). Genotypes of wild-type and heterozygous transgenic embryos are indicated across the top of the figure. The position of the midbrain–hindbrain border is marked with an asterisk. Regions with ectopic gene expression (e) are indicated.
