Fig. 3

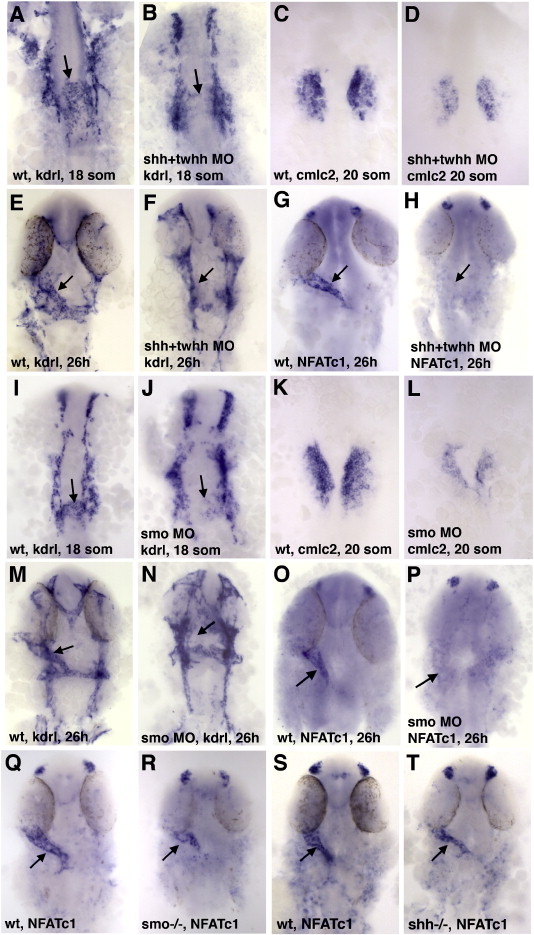

Endocardial and myocardial markers are reduced in shh + twhh and smo MO knockdown and mutant embryos. Ventral view of the anterior region in flat-mounted embryos except as noted; anterior is to the top. (A–H) Injection of a mixture of shha and twhh/shhb MOs resulted in strong downregulation of endocardial kdrl (A,B,E,F), NFATc1 (G,H) (arrows) and myocardial cmlc2 (C,D) expression. (I–P) Smo MO injection results in the reduction or absence of kdrl-expressing endocardial progenitors at the midline at the 18-somite stage (arrows, I,J), the absence of endocardial kdrl (arrows, M,N) and NFATc1 expression at 26 hpf (arrows, O,P) and reduction of myocardial cmlc2 expression at the 20-somite stage (K,L). (Q–T) Smo-/- (R) and shha-/- (T) genetic mutant embryos display reduced endocardial NFATc1 expression (arrows) compared to their siblings (Q,S).
