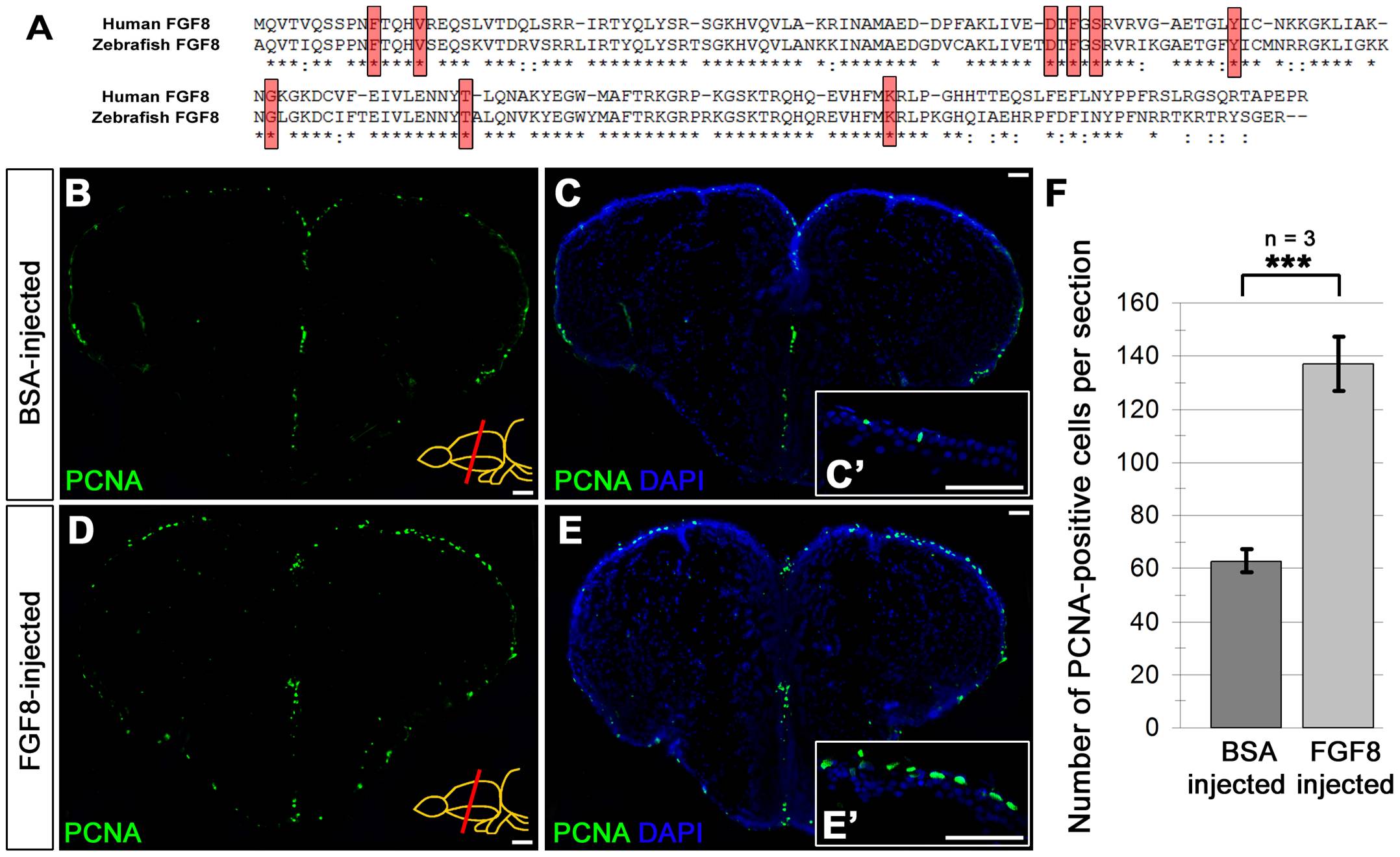

Fig. 7 CVMI of FGF8 increases ventricular cell proliferation.

(A) Pairwise sequence alignment between human FGF8 (NP_149355) and zebrafish Fgf8 (NP_571356) showing 86.4% similarity between two proteins. Red boxes indicate the residues required for ligand-receptor interaction and they are completely conserved between human and zebrafish. Asterisks indicate identical residues; semicolons indicate conservative substitutions. (B) PCNA immunohistochemistry (IHC) on the telencephalon of BSA-injected brains at 1 dpi. (C) DAPI counterstaining on A. (C′) High magnification of dorsal telencephalon. (D) PCNA immunohistochemistry (IHC) on the telencephalon of FGF8-injected brains at 1 dpi. (E) DAPI counterstaining on C. (E′) High magnification of dorsal telencephalon. (F) Graph depicts the average number of PCNA-positive cells per section. Scale bars 50 μm. N = 3 adult fish for each injection.
